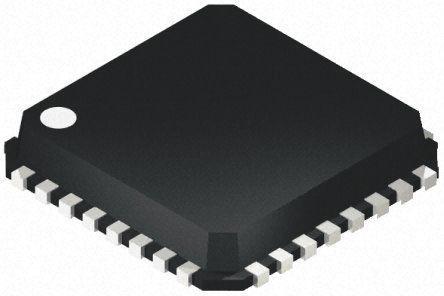

Analog Devices AD7194BCPZ, 24-bit Serial ADC, 32-Pin LFCSP WQ

AD7194BCPZ Analog Devices , 24-bit Serial ADC, 32-Pin LFCSP WQ
Analog Devices

Product Information

Number of ADCs:
1
Number of Input Channels:
8
Integral Nonlinearity Error:
±30LSB
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Dimensions:
5.1 x 5.1 x 0.75mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
2.7 → 5.25 V
Height:
0.75mm
Width:
5.1mm
Length:
5.1mm
Package Type:
LFCSP WQ
Architecture:
Delta Sigma
Input Type:
Voltage
Maximum Operating Temperature:
+105 °C
Resolution:
24-bit
Pin Count:
32
RoHs Compliant
Checking for live stock

This is 24-bit Serial ADC 32-Pin LFCSP WQ manufactured by Analog Devices. The manufacturer part number is AD7194BCPZ. It contains 1 ADCs . It contains 8 input channels . Its integral nonlinearity error is ±30lsb . Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . The given dimensions of the product include 5.1 x 5.1 x 0.75mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 2.7 → 5.25 v. In addition, the height is 0.75mm. Furthermore, the product is 5.1mm wide. Its accurate length is 5.1mm. The package is a sort of lfcsp wq. The product has been designed as delta sigma. It carries voltage input type. It has a maximum operating temperature of +105 °c. Features 24-bit resolution. It contains 32 pins.

pdf icon
AD7194, 8-Channel, 4.8kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.


FAQs

Yes. You can also search AD7194BCPZ on website for other similar products.
We accept all major payment methods for all products including ET14057001. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD7194BCPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose ADCs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD7194BCPZ, 24-bit Serial ADC, 32-Pin LFCSP WQ. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD7194BCPZ, 24-bit Serial ADC, 32-Pin LFCSP WQ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14057001 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14057001.
Yes. We ship AD7194BCPZ Internationally to many countries around the world.
