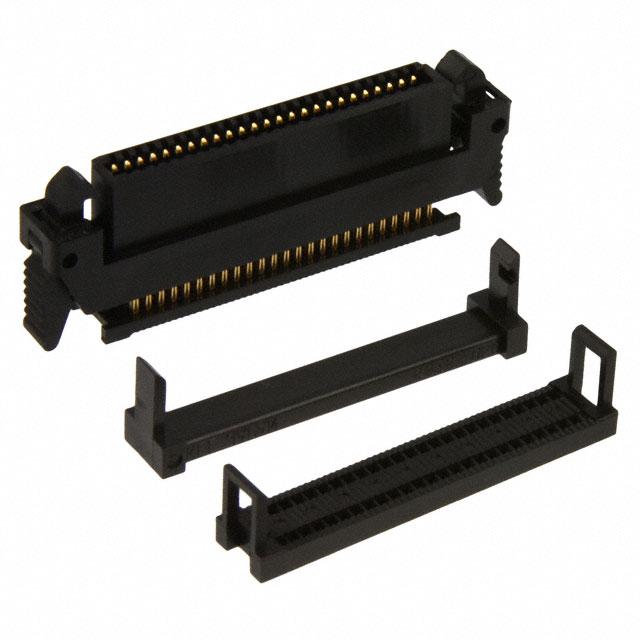

3M P25E-050S-EA

Enrgtech Part No: ET13722307
|
Manufacturer Part No:
P25E-050S-EA
|
Manufacturer: 3M

Product Information

Current Rating:

500mA

Minimum Operating Temperature:

-55°C

Mounting Type:

Cable Mount

Gender:

Female

Body Orientation:

Straight

Pitch:

1.27mm

Termination Method:

IDC

Housing Material:

Glass Filled Nylon

Number of Rows:

Contact Plating:

Gold, Nickel

Series:

P25E

Number of Contacts:

Checking for live stock

The 3M P25E-050S-EA is a premium-grade 50-way wire-to-board IDC connector designed for high-density electronic assemblies requiring reliable signal integrity. Part of the Pak 25 series, this socket features a 1.27mm pitch, making it an ideal solution for compact space-saving applications. Its insulation displacement contact technology ensures a gas-tight connection without the need for stripping wires, significantly reducing assembly time while maintaining exceptional electrical performance in demanding industrial and computing environments.

Reasons You Should Use the Product

This 3M P25E-050S-EA connector maximises board space and simplifies cable termination with its high-density design and efficient IDC technology. It ensures long-term reliability.

1.27mm pitch allows for significant miniaturisation of equipment.
IDC termination provides fast, consistent, and solderless connections.
Gold-plated contacts ensure superior conductivity and oxidation resistance.

Core Performance Features & Key Uses

The P25E-050S-EA is engineered for high-speed data transmission and daisy-chain configurations. It is widely used in internal computer wiring, industrial control systems, and telecommunications equipment where multiple signal lines must be managed within a restricted footprint.

Technical Specifications
Number of Contacts: 50 Positions
Pitch: 1.27 mm (0.050")
Contact Material: Phosphor Bronze
Plating: Gold over Nickel
Current Rating: 1A.
Suitable Environments
Data centres and server enclosures
Industrial automation control panels
Medical diagnostic instrumentation
Compact consumer electronics.

Datasheet(Technical Reference)

P25/P50 - obsolete 28/MAR/2006(PCN Other)

P25E Series(Datasheets)

Interconnect Catalog(Datasheets)
