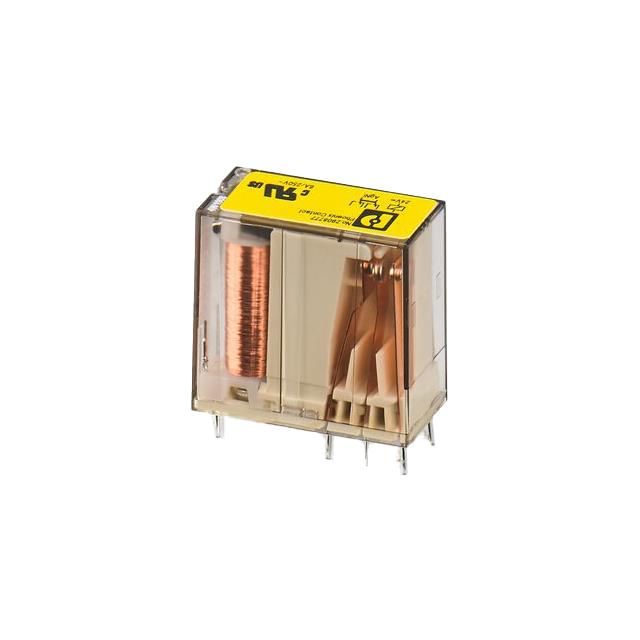

Phoenix Contact REL-SR Series 24V dc PCB Mount Interface Relay Module, DPDT, Screw
Product Information
Coil Voltage:
24V dc
Life:
10^7 (Mechanical) cycles
Standards Met:
DIN EN 50178, IEC 60664-1
Coil Power:
0.7W
Maximum Switching Voltage DC:
250V
Isolation Coil To Contact:
4kV
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
Maximum Switching Current AC:
6 A
Switching Current:
6A
Contact Configuration:
DPDT
Depth:
25.5mm
Mounting Type:
PCB Mount
Series:
REL-SR- 24DC/2X21/FG
Length:
12.6mm
Height:
29mm
Maximum Switching Current DC:
6 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-25°C
Number of Poles:
2
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
PC Pin
Operating Temperature:
-25°C ~ 70°C
Coil Resistance:
827.586 Ohms
Coil Current:
29 mA
Switching Voltage:
250VAC, 250VDC - Max
Coil Power:
700mW
REACH Status:
REACH Unaffected
Must Operate Voltage:
-
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
10 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
6 A
Features:
-
Mounting Type:
Through Hole
Series:
REL-SR
Release Time:
4 ms
ECCN:
EAR99
Contact Material:
Silver Nickel (AgNi)
Checking for live stock
FAQs
Yes. You can also search 2908777 on website for other similar products.
We accept all major payment methods for all products including ET16924313. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2908777 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Force Guided Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact REL-SR Series 24V dc PCB Mount Interface Relay Module, DPDT, Screw. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact REL-SR Series 24V dc PCB Mount Interface Relay Module, DPDT, Screw.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16924313 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16924313.
Yes. We ship 2908777 Internationally to many countries around the world.
This is REL-SR Series 24V dc PCB Mount Interface Relay Module DPDT Screw manufactured by Phoenix Contact. The manufacturer part number is 2908777. The coil voltage of the product is 24v dc. It is capable of doing 10^7 (mechanical) cycles in a lifetime . The product complies with all safety standards, such as din en 50178, iec 60664-1. Robust coil power of 0.7w. While it carries 250v of maximum DC switching voltage. The product has 4kv isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a screw type. It has a maximum 6 a switching current AC . It is integrated with 6a switching current. The contact is equipped with dpdt configuration. The product comes in 25.5mm depth. The product is available in pcb mount configuration. The product rel-sr- 24dc/2x21/fg, is a highly preferred choice for users. Its accurate length is 12.6mm. In addition, the height is 29mm. It has a minimum 6 a DC switching current . It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -25°c. It has equipped with 2 poles. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has pc pin terminal style. The product has -25°c ~ 70°c operating temperature range. It holds up to 827.586 ohms coil resistance. It has a coil current of 29 ma. The product's switching voltage is 250vac, 250vdc - max. Robust coil power of 700mw. In addition, it is reach unaffected. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 10 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 6 a. The product is available in through hole configuration. The product rel-sr, is a highly preferred choice for users. While 4 ms is its release time. The product is designated with the ear99 code number. The product is made from sturdy silver nickel (agni) materials.
