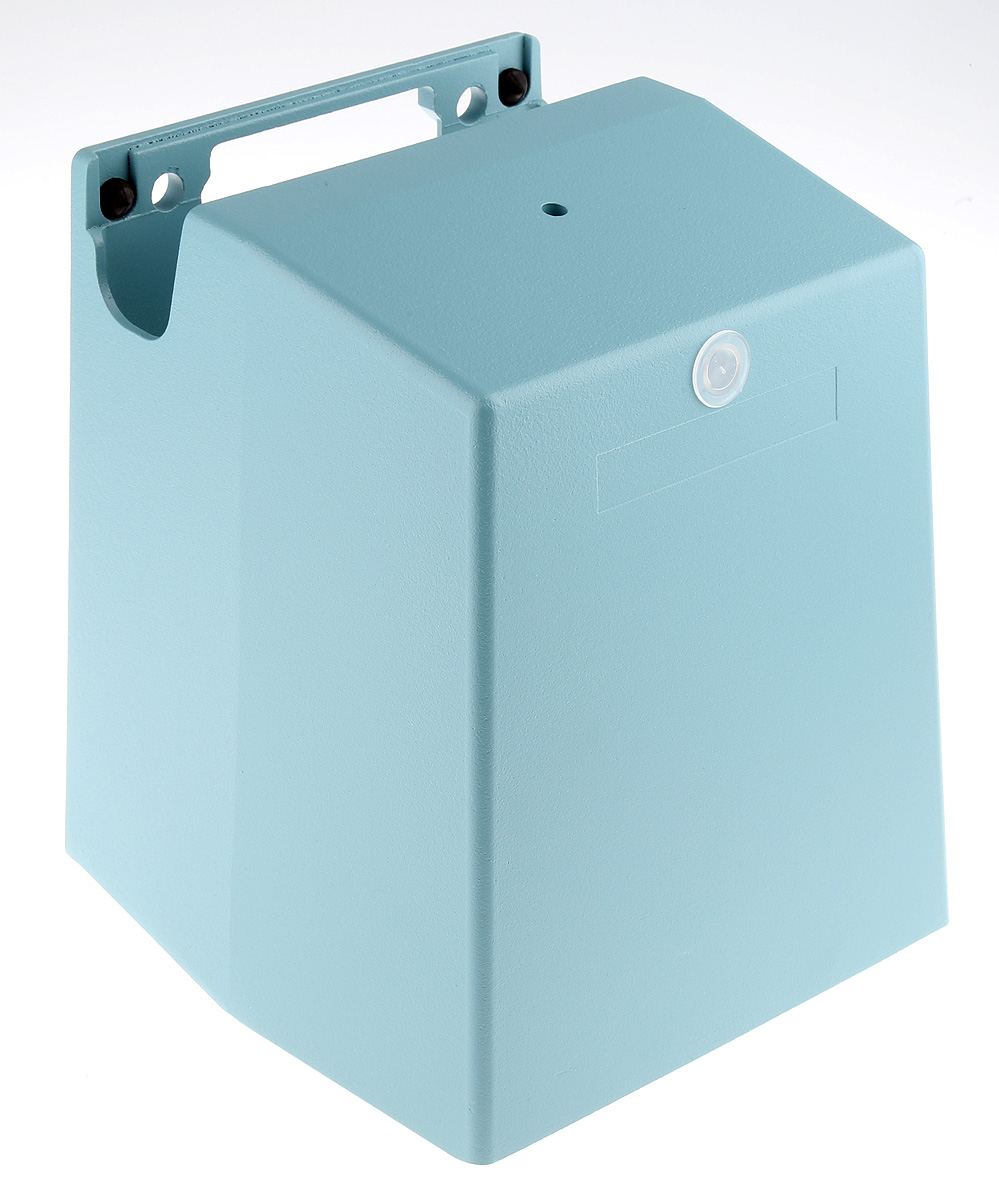

Foot Switch Guard Cover for Foot Switch

XPE Metal Footswitches Metal housed footswitches, with or without protective guard cover. The guarded cover types are strongly recommended in high risk areas where accidental starting of the machine, either by human action or falling objects can occur. Footswitches featuring 2 step contact operation are ideal for applications involving 2 speed machines. The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm). The trigger action types enable locking of the pedal in rest position, positive action is required before the pedal can be depressed. Available with or without trigger mechanism in 1 or 2 step configurations Large surface area of pedal assures stability of foot and operator comfort High and wide protective cover accommodates both large size and safety boots Can be fixed to the floor or on a support for improved stability Blue IP66 metal housing Voltage Rating AC-15 240V 3A DC-13 250V 0.27A (IEC/EN 60947-5-1) Insulation Voltage 300V Withstand Voltage 6kV (IEC/EN 60947-1, IEC60664) Resistance ≤25mΩ (IEC 60255-7 cat3) Mechanical Life 5 million operations Operating Temperature -25° to +70°C Cable Entries Metal Types 2 x PG16 Connection Screw Clamp Terminals – 2.5mm 2 max. Approvals CSA Industrial Duty Footswitches A range of robust footswitches suited for industrial environments issuing start and normal stop instructions to many types of machines. They allow the operator greater freedom of movement.

For more information please check the datasheets.
