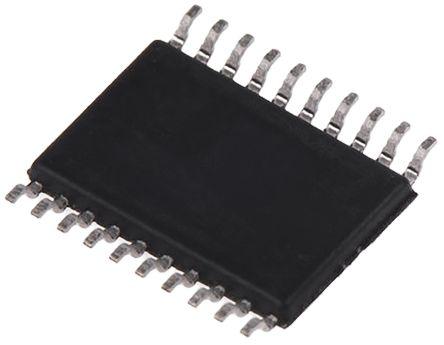

ON Semiconductor MC74LCX574DTG Octal D Type Flip Flop IC, 3-State, 2 → 3.6 V, 20-Pin TSSOP

MC74LCX574DTG ON Semiconductor Octal D Type Flip Flop IC, 3-State, 2 → 3.6 V, 20-Pin TSSOP
MC74LCX574DTG
ON Semiconductor

Product Information

Polarity:
Non-Inverting
Dimensions:
6.6 x 4.5 x 1.05mm
Logic Family:
LCX
Width:
4.5mm
Input Type:
TTL
Maximum Propagation Delay Time @ Maximum CL:
9.5 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
3 State
Package Type:
TSSOP
Number of Elements per Chip:
8
Maximum Operating Temperature:
+85 °C
Output Signal Type:
Single Ended
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
1.05mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Octal D Type Flip Flop IC 3-State 2 → 3.6 V 20-Pin TSSOP manufactured by ON Semiconductor. The manufacturer part number is MC74LCX574DTG. While providing non-inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The logic family is lcx. Furthermore, the product is 4.5mm wide. It carries ttl input type. It provides up to 9.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has a3 state output. The package is a sort of tssop. It consists of 8 elements per chip. It has a maximum operating temperature of +85 °c. The output signal is a kind of single ended. Its accurate length is 6.6mm. It contains 20 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.
