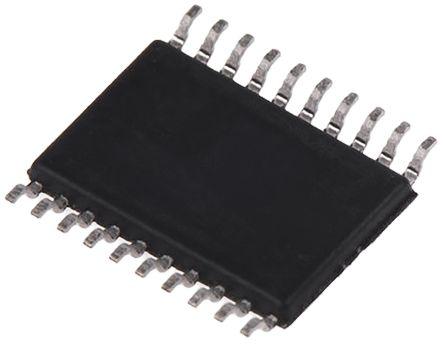

NXP 74HCT377PW Octal D Type Flip Flop IC, 4.5 → 5.5 V, 20-Pin TSSOP
Product Information
Polarity:
Inverting
Dimensions:
6.6 x 4.5 x 0.95mm
Logic Family:
74HCT
Width:
4.5mm
Input Type:
TTL
Maximum Propagation Delay Time @ Maximum CL:
48 ns @ 50 pF
Minimum Operating Supply Voltage:
4.5 V
Package Type:
TSSOP
Number of Elements per Chip:
8
Maximum Operating Temperature:
+125 °C
Set/Reset:
Master Reset
Output Signal Type:
Single Ended
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
D Type
Height:
0.95mm
Minimum Operating Temperature:
-40 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74HCT377PW on website for other similar products.
We accept all major payment methods for all products including ET14157986. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74HCT377PW directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Flip Flop ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74HCT377PW Octal D Type Flip Flop IC, 4.5 → 5.5 V, 20-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on NXP 74HCT377PW Octal D Type Flip Flop IC, 4.5 → 5.5 V, 20-Pin TSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14157986 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14157986.
Yes. We ship 74HCT377PW Internationally to many countries around the world.
This is NXP Octal D Type Flip Flop IC 4.5 → 5.5 V 20-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74HCT377PW. While providing inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. The logic family is 74hct. Furthermore, the product is 4.5mm wide. It carries ttl input type. It provides up to 48 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. The package is a sort of tssop. It consists of 8 elements per chip. It has a maximum operating temperature of +125 °c. It has a set/reset or master reset feature . The output signal is a kind of single ended. Its accurate length is 6.6mm. It contains 20 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes d type. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. It is tailored with a positive edge type triggering . Features 50pf of propagation delay test condition.
