Panasonic Electric Works AYF531465TA
Product Information

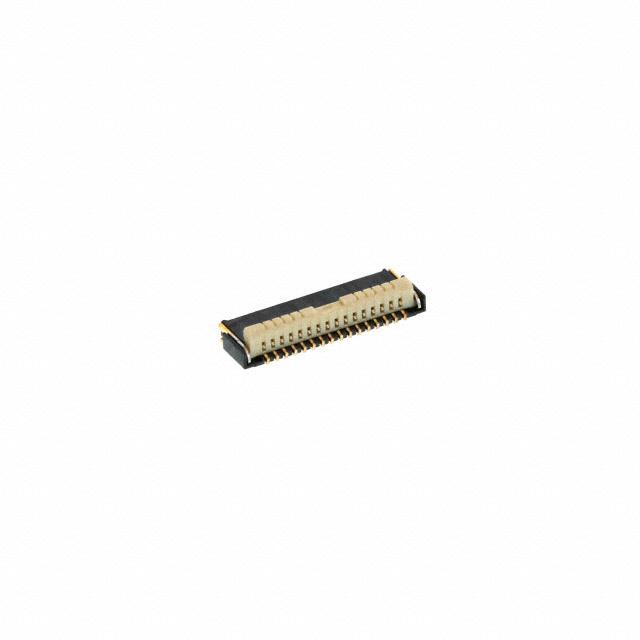

The AYF531465TA is a 14-position FPC connector designed and developed by Panasonic Electric Works for flexible printed circuit boards (FPC). It has contacts for both top and bottom connections, with a surface mount of 0.020" (0.50mm) and a right-angle orientation for ease of installation.
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.039" (1.00mm)
Actuator Color:
-
Contact Finish Thickness:
-
standardLeadTime:
17 Weeks
Locking Feature:
Flip Lock, Backlock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
14
Flat Flex Type:
FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
Package:
Strip
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A per Contact
Connector/Contact Type:
Contacts, Top and Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Y5BW
FFC, FCB Thickness:
0.30mm
Base Product Number:
AYF531465
Pitch:
0.020" (0.50mm)
Contact Material:
Copper Alloy
Actuator Material:
Liquid Crystal Polymer (LCP)
Cable End Type:
Notched
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AYF531465TA on website for other similar products.
We accept all major payment methods for all products including ET21493984. Please check your shopping cart at the time of order.
You can order Panasonic Electric Works brand products with AYF531465TA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electric Works AYF531465TA. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electric Works AYF531465TA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21493984 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electric Works" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21493984.
Yes. We ship AYF531465TA Internationally to many countries around the world.
The Panasonic Electric Works AYF531465TA is a high-quality 14-position FPC (Flexible Printed Circuit) connector that offers reliable connectivity in electronic devices. With top and bottom 0.020" (0.50mm) surface mount capabilities and a right-angle design, this connector is suitable for various space-constrained applications. Its durable construction, precise pitch, and 14-position compatibility make it a versatile choice for multiple applications in the electronics industry.
The AYF531465TA connector is compact and robust, making it ideal for small electronic devices. It is built to withstand demanding environments and provides excellent durability. The right-angle design allows easy PCB (Printed Circuit Board) integration, saving valuable space and facilitating efficient assembly.
The connector's top and bottom surface mount feature enables secure attachment to the PCB, ensuring reliable electrical connections. The 0.020" (0.50mm) pitch allows for precise placement during assembly, contributing to the overall reliability and performance of the electronic device.
The AYF531465TA supports a 14-position FPC connection, providing flexibility for various applications. This connector is designed explicitly for FPC cables, which are thin and flexible, making them suitable for applications that require intricate bending or tight spaces.
Panasonic Electric Works is renowned for producing high-quality components, and the AYF531465TA is no exception. This connector offers excellent electrical performance, ensuring reliable signal transmission and minimizing signal loss. Its sturdy construction and superior materials contribute to its long-lasting durability, making it suitable for demanding applications.
Potential Applications of Panasonic Electric Works AYF531465TA:
The AYF531465TA connector finds applications in various electronic devices, including smartphones, tablets, digital cameras, portable gaming consoles, and more. Its compact design, surface mount capability, and reliable performance make it an excellent choice for manufacturers seeking a dependable FPC connector solution.
