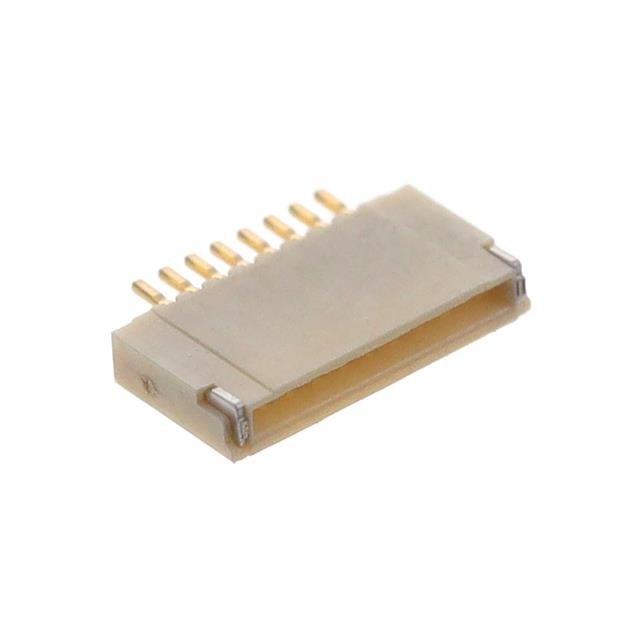

Hirose Electric Co Ltd TF29-8S-0.4SH(800)

TF29-8S-0-4SH-800- Hirose Electric Co Ltd TF29-8S-0.4SH(800)
Hirose Electric Co Ltd

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.030" (0.75mm)
Actuator Color:
Black
Contact Finish Thickness:
2.00µin (0.051µm)
standardLeadTime:
16 Weeks
Locking Feature:
Flip Lock, Backlock
Number of Positions:
8
Flat Flex Type:
FPC
Housing Color:
Beige
Material Flammability Rating:
UL94 V-0
Manufacturer:
Hirose Electric Co Ltd
Voltage Rating:
50V
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
TF29
FFC, FCB Thickness:
0.12mm
Packaging:
Tape & Reel (TR)
Base Product Number:
TF29
Pitch:
0.016" (0.40mm)
ECCN:
EAR99
Actuator Material:
Liquid Crystal Polymer (LCP)
Cable End Type:
Notched
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is TF29-8S-0.4SH(800). It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp) housing material. The product has -55°c ~ 85°c operating temperature range. It is 0.030" (0.75mm) high above board. The actuator has a classic black colour. It has 2.00µin (0.051µm) of contact finishing thickness. It has a long 16 weeks standard lead time. The product has a locking feature of flip lock, backlock. The product carries possible position value of 8. It is a flat flex fpc type. It has an integral beige housing colour. It carries ul94 v-0 of material flammability rating. The hirose electric co ltd's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product tf29, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.12mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to tf29, a base product number of the product. Moreover, the product is 0.016" (0.40mm). The product is designated with the ear99 code number. The actuator is designed from sturdy liquid crystal polymer (lcp) material. The cable end is a type of notched end. The product is made from sturdy phosphor bronze materials.

pdf icon
TF29-8S-0.4SH(800)(Datasheets)
