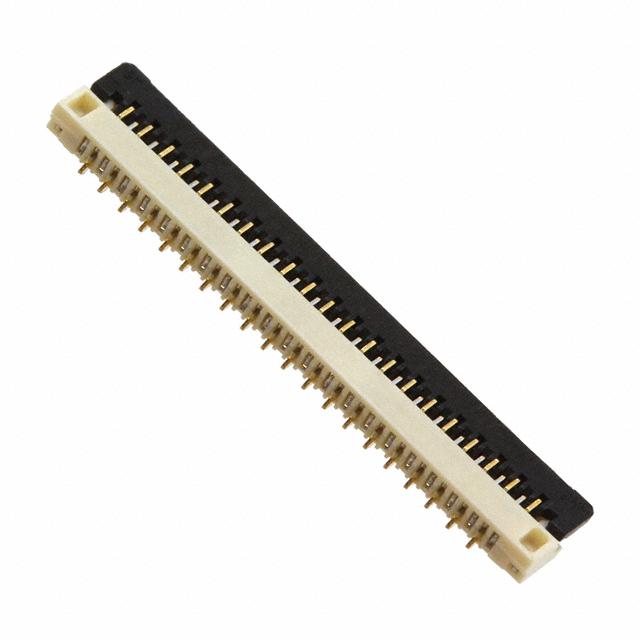

Molex 503566-4100
Product Information
HTSUS:
8536.69.4051
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.037" (0.95mm)
Actuator Color:
Black
Contact Finish Thickness:
-
Number of Positions:
41
Locking Feature:
Flip Lock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
edacadModel:
503566-4100 Models
Flat Flex Type:
FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0, UL94 HB
edacadModelUrl:
/en/models/3197129
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
10
Current Rating (Amps):
0.2A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 503566
FFC, FCB Thickness:
0.20mm
Pitch:
0.012" (0.30mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Cable End Type:
Tabbed
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 503566-4100 on website for other similar products.
We accept all major payment methods for all products including ET17803203. Please check your shopping cart at the time of order.
You can order Molex brand products with 503566-4100 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 503566-4100. You can also check on our website or by contacting our customer support team for further order details on Molex 503566-4100.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17803203 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17803203.
Yes. We ship 503566-4100 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 503566-4100. It is assigned with possible HTSUS value of 8536.69.4051. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.037" (0.95mm) high above board. The actuator has a classic black colour. The product carries possible position value of 41. The product has a locking feature of flip lock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. It is a flat flex fpc type. It has an integral white housing colour. It carries ul94 v-0, ul94 hb of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 10. Additionally, the product's output is 0.2a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product easy-on 503566, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.20mm. Moreover, the product is 0.012" (0.30mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The cable end is a type of tabbed end. The product is designated with the ear99 code number.
