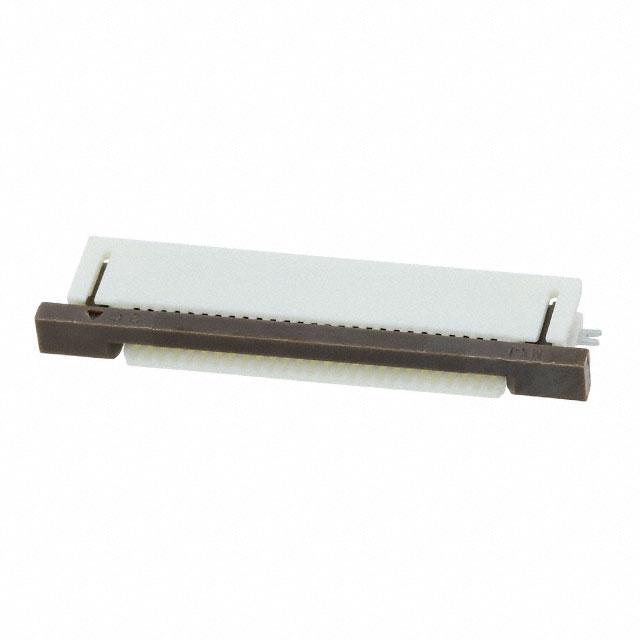

Molex 0524372771

0524372771 Molex
0524372771
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.079" (2.00mm)
Actuator Color:
Brown
Contact Finish Thickness:
-
standardLeadTime:
24 Weeks
Locking Feature:
Slide Lock
REACH Status:
REACH Unaffected
Number of Positions:
27
edacadModel:
0524372771 Models
Flat Flex Type:
FFC, FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3262903
Manufacturer:
Molex
Voltage Rating:
50V
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 52437
FFC, FCB Thickness:
0.30mm
Packaging:
Tape & Reel (TR)
Base Product Number:
052437
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Straight, Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0524372771. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polyamide (pa46), nylon 4/6, glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.079" (2.00mm) high above board. The actuator has a classic brown colour. It has a long 24 weeks standard lead time. The product has a locking feature of slide lock. In addition, it is reach unaffected. The product carries possible position value of 27. It is a flat flex ffc, fpc type. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. The molex's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product easy-on 52437, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to 052437, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled material. The cable end is a type of straight, tapered end. The product is designated with the ear99 code number.
