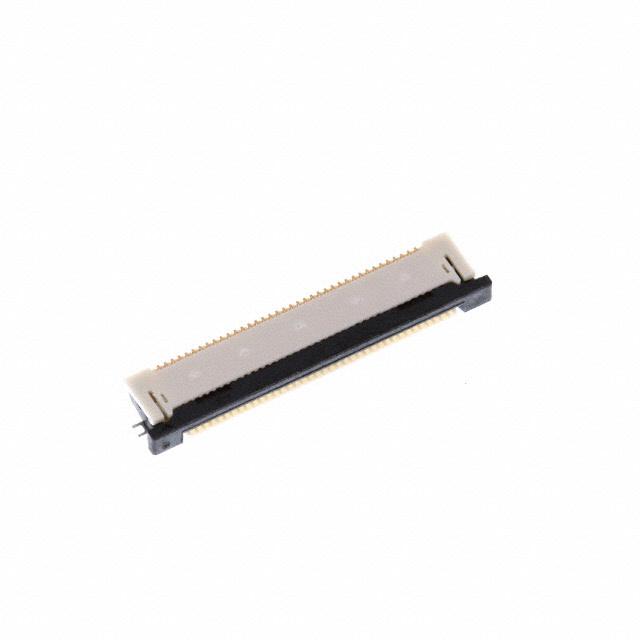

Molex 0541323862
Product Information
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature:
-20°C ~ 85°C
Height Above Board:
0.079" (2.00mm)
Actuator Color:
Black
Contact Finish Thickness:
3.94µin (0.10µm)
standardLeadTime:
16 Weeks
Locking Feature:
Slide Lock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
38
edacadModel:
0541323862 Models
Flat Flex Type:
FFC, FPC
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3197014
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 54132
FFC, FCB Thickness:
0.30mm
Base Product Number:
054132
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Straight, Tapered
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0541323862 on website for other similar products.
We accept all major payment methods for all products including ET17504350. Please check your shopping cart at the time of order.
You can order Molex brand products with 0541323862 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0541323862. You can also check on our website or by contacting our customer support team for further order details on Molex 0541323862.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17504350 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17504350.
Yes. We ship 0541323862 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0541323862. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polyamide (pa46), nylon 4/6, glass filled housing material. The product has -20°c ~ 85°c operating temperature range. It is 0.079" (2.00mm) high above board. The actuator has a classic black colour. It has 3.94µin (0.10µm) of contact finishing thickness. It has a long 16 weeks standard lead time. The product has a locking feature of slide lock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 38. It is a flat flex ffc, fpc type. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product easy-on 54132, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 054132, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled material. The cable end is a type of straight, tapered end. The product is designated with the ear99 code number.
