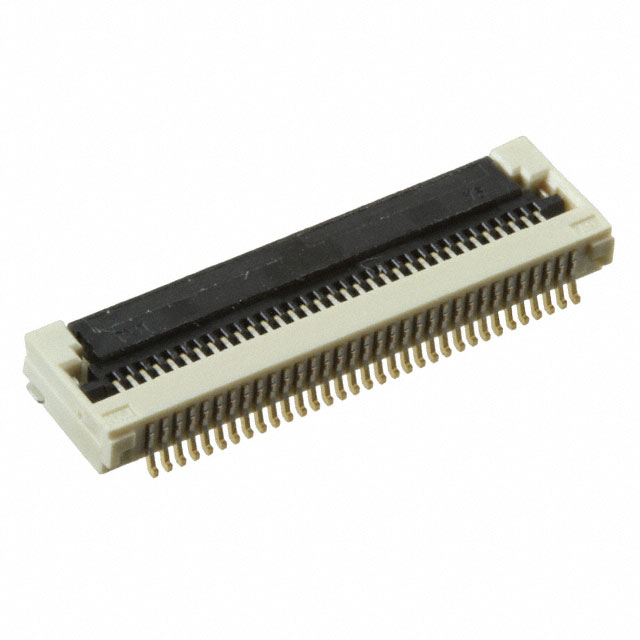

Molex 5022443330

5022443330 Molex
5022443330
Molex

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-25°C ~ 85°C
Height Above Board:
0.092" (2.33mm)
Actuator Color:
Black
Contact Finish Thickness:
3.94µin (0.10µm)
standardLeadTime:
17 Weeks
Locking Feature:
Flip Lock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
33
edacadModel:
5022443330 Models
Flat Flex Type:
FFC
Housing Color:
White
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2818928
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.4A
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
Easy-On 502244
FFC, FCB Thickness:
0.30mm
Base Product Number:
502244
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Cable End Type:
Straight
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5022443330. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp), glass filled housing material. The product has -25°c ~ 85°c operating temperature range. It is 0.092" (2.33mm) high above board. The actuator has a classic black colour. It has 3.94µin (0.10µm) of contact finishing thickness. It has a long 17 weeks standard lead time. The product has a locking feature of flip lock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 33. It is a flat flex ffc type. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.4a. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product easy-on 502244, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to 502244, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The cable end is a type of straight end. The product is designated with the ear99 code number.
