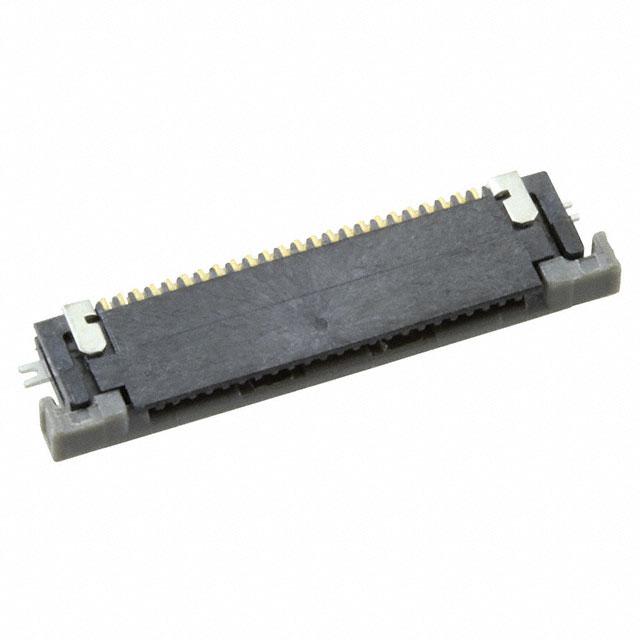

Amphenol ICC (FCI) SFV24R-4STBE1HLF

SFV24R-4STBE1HLF Amphenol ICC (FCI)
SFV24R-4STBE1HLF
Amphenol ICC (FCI)

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.071" (1.80mm)
Actuator Color:
Black
Contact Finish Thickness:
-
standardLeadTime:
17 Weeks
Locking Feature:
Slide Lock
title:
SFV24R-4STBE1HLF
REACH Status:
REACH Unaffected
Number of Positions:
24
edacadModel:
SFV24R-4STBE1HLF Models
Flat Flex Type:
FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4270657
Manufacturer:
Amphenol ICC (FCI)
Voltage Rating:
50V
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A
Connector/Contact Type:
Contacts, Top
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
SFV-R
FFC, FCB Thickness:
0.33mm
Packaging:
Tape & Reel (TR)
Base Product Number:
SFV24R
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type:
Tapered
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is SFV24R-4STBE1HLF. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp), glass filled, halogen free housing material. The product has -55°c ~ 105°c operating temperature range. It is 0.071" (1.80mm) high above board. The actuator has a classic black colour. It has a long 17 weeks standard lead time. The product has a locking feature of slide lock. In addition, it is reach unaffected. The product carries possible position value of 24. It is a flat flex fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. The amphenol icc (fci)'s product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a. It has built-in connector or contact of contacts, top. The splendid features of the product include zero insertion force (zif). The product is available in surface mount, right angle configuration. The product sfv-r, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.33mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to sfv24r, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled, halogen free material. The cable end is a type of tapered end. The product is designated with the ear99 code number.
