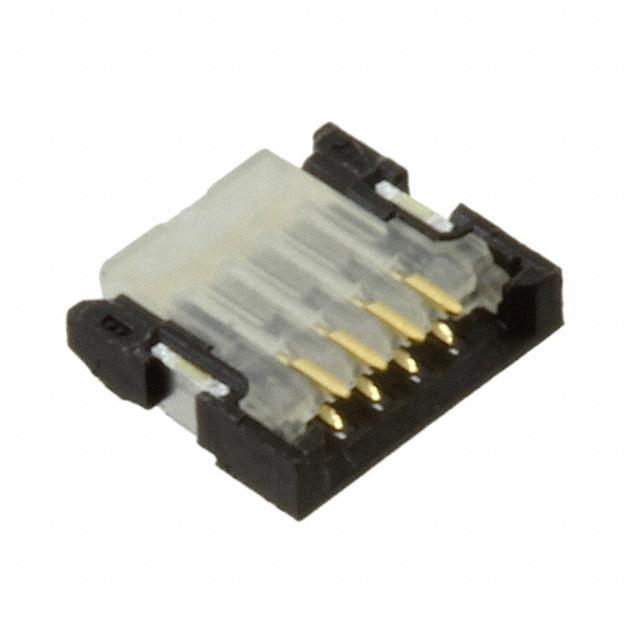

Molex Easy-On 501461 Series 0.5mm Pitch 4 Way Right Angle SMT Female FPC Connector, Solder
Product Information
Number of Contacts:
4
Current Rating:
300 (Contact)mA
Termination Type:
Solder
Mounting Type:
Surface Mount
Voltage Rating:
50 Vrms ac/dc
Gender:
Female
Body Orientation:
Right Angle
Pitch:
0.5mm
Termination Method:
SMT
Number of Rows:
1
Contact Plating:
Gold
Series:
Easy-On
Contact Material:
Copper Alloy
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Series Number:
501461
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyamide (PA), Nylon, Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.031" (0.80mm)
Actuator Color:
White
Contact Finish Thickness:
3.94µin (0.10µm)
standardLeadTime:
17 Weeks
Locking Feature:
Flip Lock, Backlock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
4
edacadModel:
5014610491 Models
Flat Flex Type:
FPC
Housing Color:
Black
Material Flammability Rating:
UL94 HB
edacadModelUrl:
/en/models/4693471
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.3A
Connector/Contact Type:
Contacts, Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
BackFlip 501461
FFC, FCB Thickness:
0.12mm
Base Product Number:
501461
Pitch:
0.020" (0.50mm)
Contact Material:
Phosphor Bronze
Actuator Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Cable End Type:
Notched
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5014610491 on website for other similar products.
We accept all major payment methods for all products including ET16778244. Please check your shopping cart at the time of order.
You can order Molex brand products with 5014610491 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex Easy-On 501461 Series 0.5mm Pitch 4 Way Right Angle SMT Female FPC Connector, Solder. You can also check on our website or by contacting our customer support team for further order details on Molex Easy-On 501461 Series 0.5mm Pitch 4 Way Right Angle SMT Female FPC Connector, Solder.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16778244 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16778244.
Yes. We ship 5014610491 Internationally to many countries around the world.
This is Easy-On 501461 Series 0.5mm Pitch 4 Way Right Angle SMT Female FPC Connector Solder manufactured by Molex. The manufacturer part number is 5014610491. The product contains 4 contacts. The product has a current rating of 300 (contact)ma. The product is designed with a solder termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 vrms ac/dc voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It allows smt termination method. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product easy-on, is a highly preferred choice for users. The product is made from sturdy copper alloy materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust polyamide (pa), nylon, glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.031" (0.80mm) high above board. The actuator has a classic white colour. It has 3.94µin (0.10µm) of contact finishing thickness. It has a long 17 weeks standard lead time. The product has a locking feature of flip lock, backlock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 4. It is a flat flex fpc type. It has an integral black housing colour. It carries ul94 hb of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.3a. It has built-in connector or contact of contacts, bottom. The product is available in surface mount, right angle configuration. The product backflip 501461, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.12mm. Moreover, it corresponds to 501461, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy phosphor bronze materials. The actuator is designed from sturdy polyamide (pa46), nylon 4/6, glass filled material. The cable end is a type of notched end. The product is designated with the ear99 code number.
