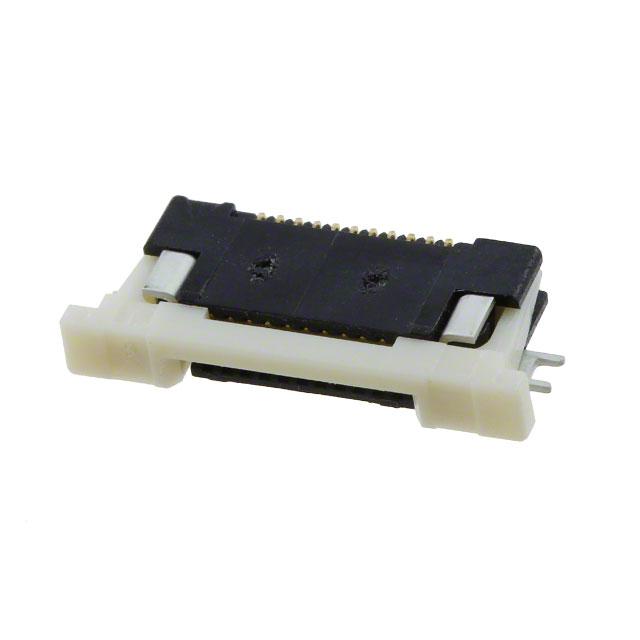

JAE Electronics IL-FPR-11S-HF-N1

IL-FPR-11S-HF-N1 JAE Electronics
JAE Electronics

Product Information

HTSUS:
8536.69.4040
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.075" (1.90mm)
Actuator Color:
White
Contact Finish Thickness:
-
Number of Positions:
11
Locking Feature:
Slide Lock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Flat Flex Type:
FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
Package:
Tray
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
-
Current Rating (Amps):
0.5A per Contact
Connector/Contact Type:
Contacts, Bottom
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
IL-FPR
FFC, FCB Thickness:
0.30mm
Pitch:
0.020" (0.50mm)
ECCN:
EAR99
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Tapered
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is IL-FPR-11S-HF-N1. It is assigned with possible HTSUS value of 8536.69.4040. The product also features robust polyphenylene sulfide (pps), glass filled housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.075" (1.90mm) high above board. The actuator has a classic white colour. The product carries possible position value of 11. The product has a locking feature of slide lock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. It is a flat flex fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 0.5a per contact. It has built-in connector or contact of contacts, bottom. The splendid features of the product include zero insertion force (zif). The product is available in surface mount, right angle configuration. The product il-fpr, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, the product is 0.020" (0.50mm). The product is designated with the ear99 code number. The actuator is designed from sturdy polyphenylene sulfide (pps), glass filled material. The cable end is a type of tapered end. The product is made from sturdy copper alloy materials.

pdf icon
IL-FPR-yyS-HF-N1 Drawing(Product Drawings)
