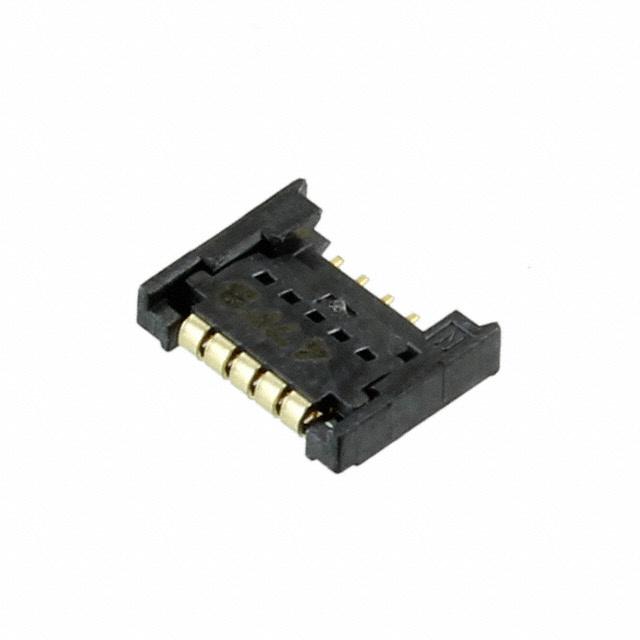

JAE Electronics FA1005SA1-R8000
Product Information
HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Housing Material:
Plastic
Operating Temperature:
-40°C ~ 85°C
Height Above Board:
0.035" (0.88mm)
Actuator Color:
Black
Contact Finish Thickness:
3.94µin (0.10µm)
standardLeadTime:
15 Weeks
Locking Feature:
-
Voltage Rating:
50V
Number of Positions:
5
edacadModel:
FA1005SA1-R8000 Models
Flat Flex Type:
FPC
Housing Color:
Black
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4879997
Package:
Tape & Reel (TR)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A per Contact
Connector/Contact Type:
Contacts, Top and Bottom
Features:
Low Insertion Force (LIF)
Mounting Type:
Surface Mount, Right Angle
Series:
FA10
FFC, FCB Thickness:
0.20mm
Base Product Number:
FA1005SA
Pitch:
0.020" (0.50mm)
Contact Material:
Copper Alloy
Actuator Material:
Plastic
Cable End Type:
Tabbed
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FA1005SA1-R8000 on website for other similar products.
We accept all major payment methods for all products including ET12132013. Please check your shopping cart at the time of order.
You can order JAE Electronics brand products with FA1005SA1-R8000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FFC, FPC (Flat Flexible) Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JAE Electronics FA1005SA1-R8000. You can also check on our website or by contacting our customer support team for further order details on JAE Electronics FA1005SA1-R8000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12132013 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JAE Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12132013.
Yes. We ship FA1005SA1-R8000 Internationally to many countries around the world.
This is manufactured by JAE Electronics. The manufacturer part number is FA1005SA1-R8000. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. The product also features robust plastic housing material. The product has -40°c ~ 85°c operating temperature range. It is 0.035" (0.88mm) high above board. The actuator has a classic black colour. It has 3.94µin (0.10µm) of contact finishing thickness. It has a long 15 weeks standard lead time. Moreover, the product has a nominal 50v voltage rating. The product carries possible position value of 5. It is a flat flex fpc type. It has an integral black housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a per contact. It has built-in connector or contact of contacts, top and bottom. The splendid features of the product include low insertion force (lif). The product is available in surface mount, right angle configuration. The product fa10, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.20mm. Moreover, it corresponds to fa1005sa, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy copper alloy materials. The actuator is designed from sturdy plastic material. The cable end is a type of tabbed end. The product is designated with the ear99 code number.
