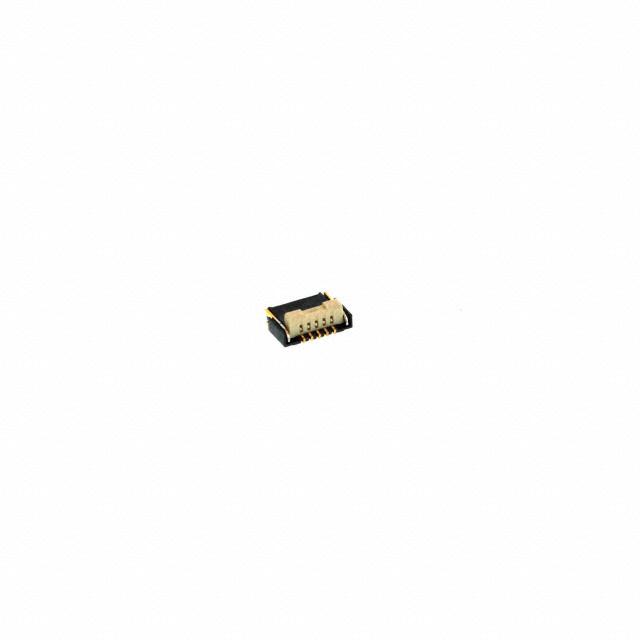

Panasonic Electric Works AYF530365TA

AYF530365TA Panasonic Electric Works
AYF530365TA
Panasonic Electric Works

Product Information

HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.039" (1.00mm)
Actuator Color:
-
Contact Finish Thickness:
-
standardLeadTime:
17 Weeks
Locking Feature:
Flip Lock, Backlock
Voltage Rating:
50V
REACH Status:
REACH Unaffected
Number of Positions:
3
Flat Flex Type:
FPC
Housing Color:
-
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Current Rating (Amps):
0.5A per Contact
Connector/Contact Type:
Contacts, Top and Bottom
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Y5BW
FFC, FCB Thickness:
0.30mm
Base Product Number:
AYF530365
Pitch:
0.020" (0.50mm)
Contact Material:
Copper Alloy
Actuator Material:
Liquid Crystal Polymer (LCP)
Cable End Type:
Notched
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is AYF530365TA. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product also features robust liquid crystal polymer (lcp) housing material. The product has -55°c ~ 85°c operating temperature range. It is 0.039" (1.00mm) high above board. It has a long 17 weeks standard lead time. The product has a locking feature of flip lock, backlock. Moreover, the product has a nominal 50v voltage rating. In addition, it is reach unaffected. The product carries possible position value of 3. It is a flat flex fpc type. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. Additionally, the product's output is 0.5a per contact. It has built-in connector or contact of contacts, top and bottom. The product is available in surface mount, right angle configuration. The product y5bw, is a highly preferred choice for users. The product has an FFC, FCB thickness of 0.30mm. Moreover, it corresponds to ayf530365, a base product number of the product. Moreover, the product is 0.020" (0.50mm). The product is made from sturdy copper alloy materials. The actuator is designed from sturdy liquid crystal polymer (lcp) material. The cable end is a type of notched end. The product is designated with the ear99 code number.

pdf icon
Y5B,Y5BW(T) Series Datasheet(Datasheets)
pdf icon
How to Read Date Codes(Other Related Documents)
pdf icon
Mult Dev Pkg Chg 24/Jun/2019(PCN Packaging)
