Detailed Description:

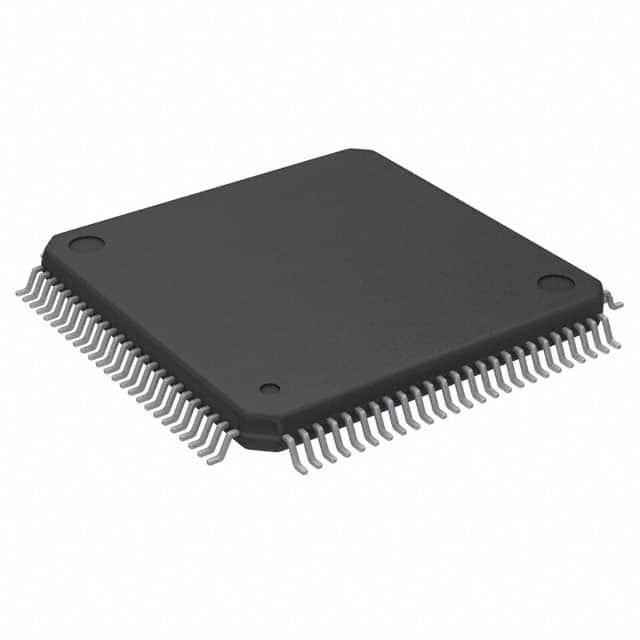

ARM® Cortex®-M4F Renesas Synergy™ S5 Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 100-LFQFP (14x14)
Package / Case:
100-LQFP
Peripherals:
Cap Sense, DMA, LVD, POR, PWM, RTC, WDT
Operating Temperature:
-40°C ~ 105°C (TA)
Voltage - Supply (Vcc/Vdd):
2.7V ~ 3.6V
Program Memory Size:
512KB (512K x 8)
RAM Size:
256K x 8
Packaging:
Tray
Program Memory Type:
FLASH
Connectivity:
CANbus, I²C, IrDA, SCI, SDH, SPI, SSI, UART, USB
Manufacturer:
Renesas Electronics America
EEPROM Size:
8K x 8
Oscillator Type:
Internal
Number of I/O:
76
Core Size:
32-Bit
Mounting Type:
Surface Mount
Series:
Renesas Synergy™ S5
Supplier Device Package:
100-LFQFP (14x14)
Data Converters:
A/D 19x12b SAR; D/A 2x12b
Customer Reference:
Core Processor:
ARM® Cortex®-M4F
Speed:
120MHz
This is manufactured by Renesas Electronics America. The manufacturer part number is R7FS5D37A3A01CFP#BA0. It features arm® cortex®-m4f renesas synergy™ s5 microcontroller ic 32-bit 120mhz 512kb (512k x 8) flash 100-lfqfp (14x14). Moreover, the product comes in 100-lqfp. It has supplied with other peripherals, such as cap sense, dma, lvd, por, pwm, rtc, wdt. The product has -40°c ~ 105°c (ta) operating temperature range. The supply voltage of a bespoke product includes 2.7v ~ 3.6v. In addition, 512kb (512k x 8) is the program memory size. The product has typical 256k x 8 RAM size. In addition, tray is the available packaging type of the product. It is a flash program memory type. It provides connectivity solutions through canbus, i²c, irda, sci, sdh, spi, ssi, uart, usb. The renesas electronics america's product offers user-desired applications. Furthermore, 8k x 8 is the typical EEPROM size of the product. The product is a internal type of oscillator. 76 is the I/O value of the product. It has a core size 32-bit. The product is available in surface mount configuration. The product renesas synergy™ s5, is a highly preferred choice for users. 100-lfqfp (14x14) is the supplier device package value. The typical data converters include a/d 19x12b sar; d/a 2x12b. arm® cortex®-m4f is the product's core processor. It has a robust speed of 120mhz.
