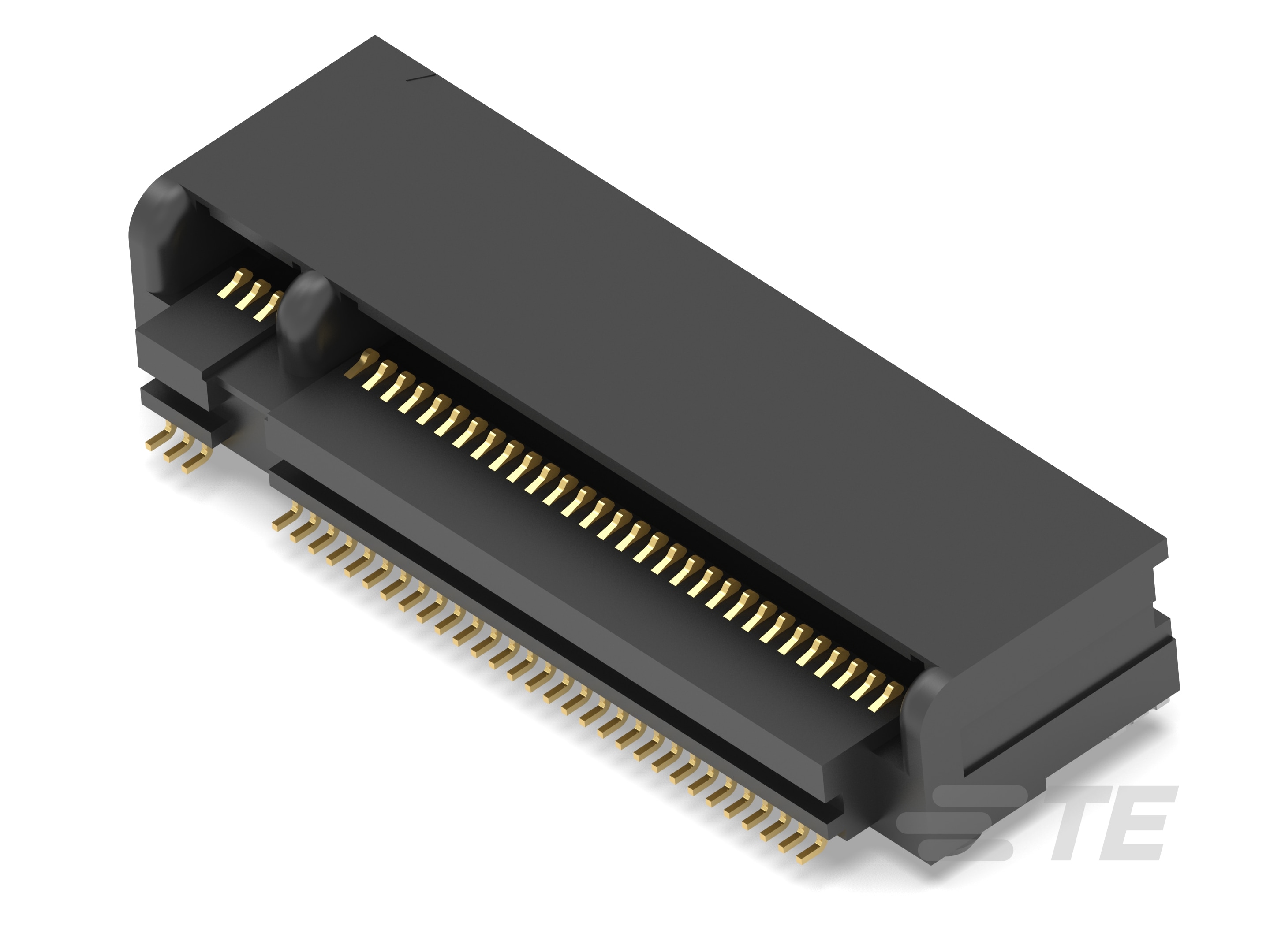

TE Connectivity 2199 Series Right Angle Edge Connector, PCB Mount, 67-Contacts, 0.5mm Pitch, 2-Row, Surface Mount

2199230-8 TE Connectivity 2199 Series Right Angle Edge Connector, PCB Mount, 67-Contacts, 0.5mm Pitch, 2-Row, Surface Mount
2199230-8 TE Connectivity 2199 Series Right Angle Edge Connector, PCB Mount, 67-Contacts, 0.5mm Pitch, 2-Row, Surface Mount
TE Connectivity

Product Information

Contact Material:
Copper Alloy
Number of Contacts:
67
Orientation:
Right Angle
Housing Material:
High Temperature Thermoplastic
Card Type:
M-2 NGFF
Series:
2199
Minimum Operating Temperature:
-40°C
Current:
0.5A
Number of Rows:
2
Standards/Approvals:
EU ELV 2000/53/EC, EU RoHS 2011/65/EU, China RoHS 2 MIIT Order No 32, 2016
Voltage:
50 V
Contact Plating:
Gold
Pitch:
0.5mm
Termination Type:
Surface Mount
Product Type:
Edge Connector
Keying Way:
Yes
Maximum Operating Temperature:
85°C
Mount Type:
PCB
RoHs Compliant
Checking for live stock

This is 2199 Series Right Angle Edge Connector PCB Mount 67-Contacts 0.5mm Pitch 2-Row Surface Mount manufactured by TE Connectivity. The manufacturer part number is 2199230-8. The product is made from sturdy copper alloy materials. The product contains 67 contacts. The product has a right angle orientation. The product also features robust high temperature thermoplastic housing material. The product features a m-2 ngff card type. The product 2199, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Features a 0.5a current in A. It comes in 2 of rows. It carries a 50 v of voltage. The high-quality gold is used as contact plating material. Moreover, the product is 0.5mm. The product is designed with a surface mount termination. edge connector is a versatile product designed to provide user-defined applications. It has a keying way characteristic yes . It has a maximum operating temperature of 85°c. It has a pcb type mount .

pdf icon
Datasheet - 2199230-8(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 2199230-8 Internationally to many countries around the world.
Yes. You can also search 2199230-8 on website for other similar products.
We accept all major payment methods for all products including ET28414051. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28414051 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28414051.
You can order TE Connectivity brand products with 2199230-8 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edge Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity 2199 Series Right Angle Edge Connector, PCB Mount, 67-Contacts, 0.5mm Pitch, 2-Row, Surface Mount. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity 2199 Series Right Angle Edge Connector, PCB Mount, 67-Contacts, 0.5mm Pitch, 2-Row, Surface Mount.
