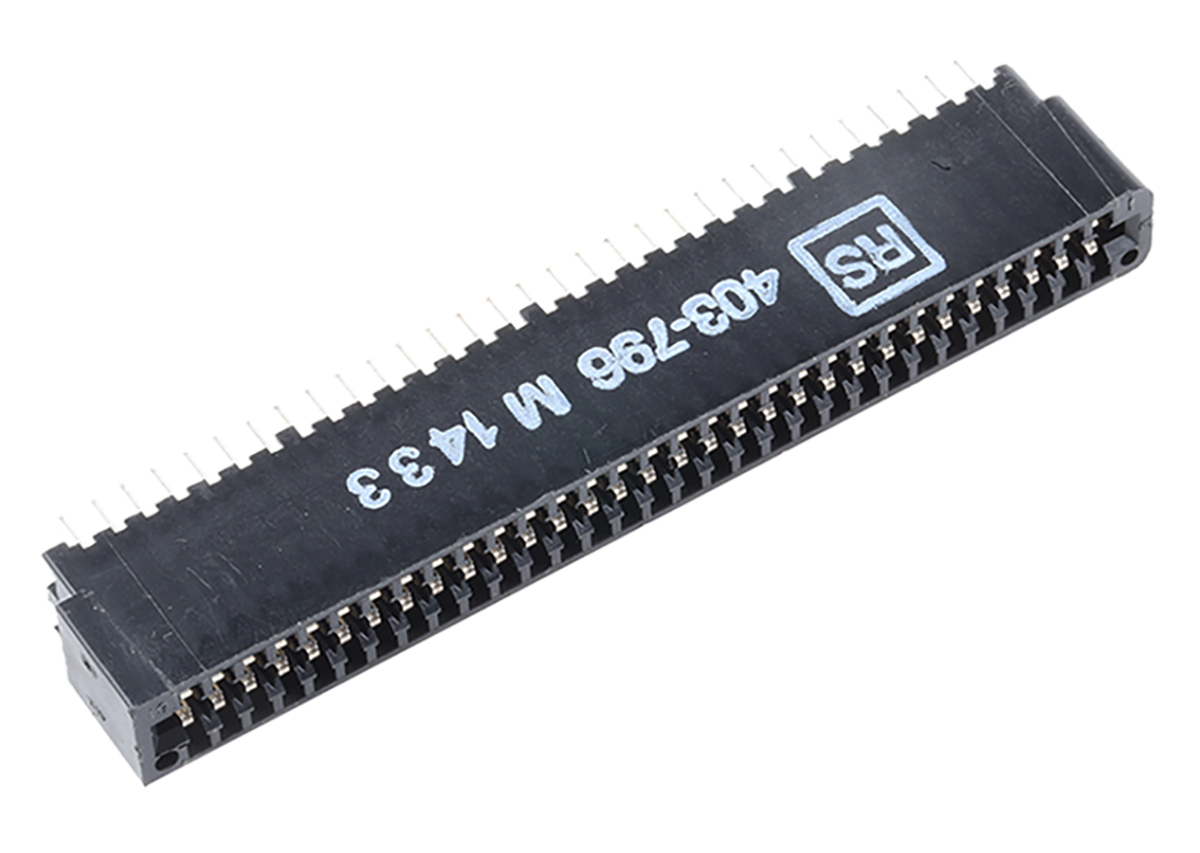

Cinch Edge Connector, PCB Mount, 31-Contacts, 2.54mm Pitch, 2-Row, Solder Termination

Enrgtech Part No: ET28380829
|
Manufacturer Part No:
BA000010000BE00
|
Manufacturer: Cinch

BA000010000BE00 Cinch Edge Connector, PCB Mount, 31-Contacts, 2.54mm Pitch, 2-Row, Solder Termination

Product Information

Current Rating:

Minimum Operating Temperature:

-55°C

Mounting Type:

PCB Mount

Maximum Operating Temperature:

+105°C

Body Orientation:

Straight

Termination Method:

Solder

Length:

85.28mm

Housing Material:

Glass Fibre Reinforced PET

Width:

9.3mm

Depth:

15.1mm

Number of Rows:

Contact Plating:

Gold over Nickel

Checking for live stock

Equip your PC-AT style or custom PCB designs with the Cinch BA000010000BE00 edge connector, engineered for precision, durability, and seamless signal routing. Additionally, this part delivers trusted build quality from a leader in interconnect solutions. Its robust construction, industry-standard pitch, and comprehensive spec sheet make it a dependable choice for engineers and procurement teams across the UK and beyond.

Key Features of the Edge Connector, PCB Mount, 31-Contacts

Connector Type: PCB-mount edge connector, 31-contacts over two rows
Pitch: 2.54 mm (0.1 in), standard PC-AT style
Contact Material & Plating: Brass contacts plated with gold over nickel for excellent conductivity and long mating life
Housing Material: Glass-fibre reinforced PET (UL 94 V-0 rated for safety and thermal stability)
Dimensions: Length 85.28 mm, Width 9.3 mm, Depth 15.1 mm
Electrical Rating: Up to 3 A per contact
Operating Temperature Range: –55 °C to +105 °C (depending on application environment)
Termination Type: Solder tails (0.156 in / 3.96 mm dip for robust PCB anchoring)

Product Unparalleled Benefits and Applications

Reliable Signal Interface: Ideal for PC-AT expansion slots, internal interconnects, industrial control modules, and point-of-sale motherboards.
Durable Build: Gold-over-nickel plating ensures low contact resistance and extended mating cycles.
Secure Alignment: Polarising key prevents misalignment and protects sensitive circuits.
Thermally Resilient: The flame-retardant housing and broad temperature range make it perfect for demanding industrial environments.
B2B-Ready: Meets global RoHS compliance and is designed for volume procurement with consistency.

AT/XT PC Edge Connectors Data Sheet(Technical Reference)
