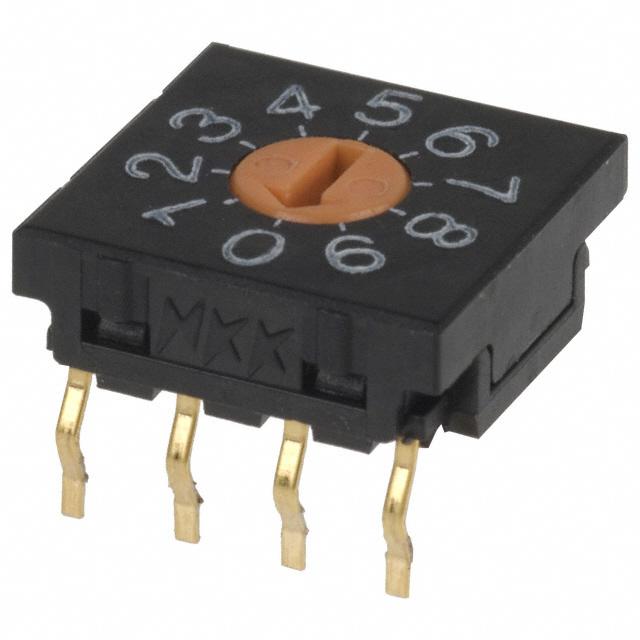

FR01FR10P-S, NKK Switches
Product Information
Number of Switch Positions:
10
Actuator Colour:
Orange
Dimensions:
10 x 10 x 3.8mm
Mounting Type:
Through Hole
Legend Text:
0-9
Contact Current Rating:
100 mA
Angle of Throw:
90°
Voltage Rating:
5 V dc, 50 V dc
Case Material:
Glass Fibre Reinforced PA
Height:
3.8mm
Width:
10mm
Depth:
10mm
Output Coding:
BCD
Minimum Operating Temperature:
-25°C
Contact Type:
Non-Shorting
Contact Material:
Copper Alloy (Movable), Phosphor Bronze (Stationary)
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder
Standards Met:
UL 94 V-0
Washable:
No
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Steps
Termination Style:
PC Pin
Operating Temperature:
-25°C ~ 85°C
Height Above Board:
0.150" (3.81mm)
Mechanical Life:
10,000 Steps
Number of Positions:
10
Actuator Level:
Flush, Recessed
Voltage Rating:
5VDC
REACH Status:
REACH Unaffected
Package:
Tube
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
0.394" (10.00mm)
Circuit:
BCD
standardLeadTime:
52 Weeks
Current Rating (Amps):
100mA
Features:
-
Mounting Type:
Through Hole
Series:
FR01
Body Material:
Polyamide (PA), Nylon, Glass Filled
Actuator Type:
Rotary for Tool
Pitch:
0.100" (2.54mm), Full
Contact Material:
Copper Alloy
Base Product Number:
FR01FR10
ECCN:
EAR99
Checking for live stock
Alternative products
FAQs
Yes. You can also search FR01FR10P-S on website for other similar products.
We accept all major payment methods for all products including ET10896359. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with FR01FR10P-S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIP Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches FR01FR10P-S. You can also check on our website or by contacting our customer support team for further order details on NKK Switches FR01FR10P-S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10896359 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10896359.
Yes. We ship FR01FR10P-S Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is FR01FR10P-S. The product includes 10 switch positions . The actuator has an adorable orange colour. The given dimensions of the product include 10 x 10 x 3.8mm. The product is available in through hole configuration. It includes 0-9 legend text . The rated contact current is 100 ma. It has a throw angle 90°. Moreover, the product has a nominal 5 v dc, 50 v dc voltage rating. The casing is constructed from highly stable glass fibre reinforced pa material. In addition, the height is 3.8mm. Furthermore, the product is 10mm wide. The product comes in 10mm depth. The product has a bcd output coding . Whereas, the minimum operating temperature of the product is -25°c. It has typical contact type of non-shorting. The product is made from sturdy copper alloy (movable), phosphor bronze (stationary) materials. It has a maximum operating temperature of +85°c. The terminal is a solder type. The product complies with all safety standards, such as ul 94 v-0. Washable - no. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 10,000 steps. Moreover, it has pc pin terminal style. The product has -25°c ~ 85°c operating temperature range. It is 0.150" (3.81mm) high above board. The product also provide mechanical stability with 10,000 steps. The product carries possible position value of 10. Features a flush, recessed actuator level. Moreover, the product has a nominal 5vdc voltage rating. In addition, it is reach unaffected. It is shipped in tube package . Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 0.394" (10.00mm). It has an integral bcd circuit. It has a long 52 weeks standard lead time. Additionally, the product's output is 100ma. The product fr01, is a highly preferred choice for users. The product's body is nicely designed from polyamide (pa), nylon, glass filled materials. The product carries rotary for tool actuator. Moreover, the product is 0.100" (2.54mm), full. The product is made from sturdy copper alloy materials. Moreover, it corresponds to fr01fr10, a base product number of the product. The product is designated with the ear99 code number.
