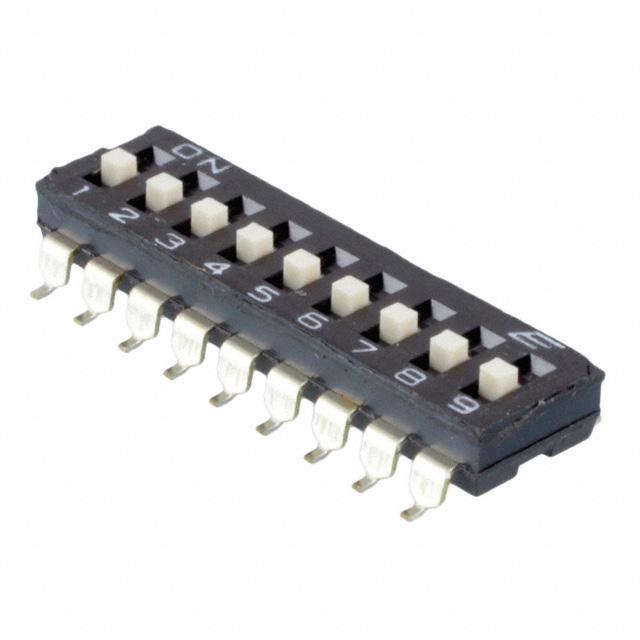

E-Switch KAE09LGGT
Product Information
The KAE09LGGT is a precision-engineered 9-position Dip Switch produced by E-Switch for optimal electronic circuit configuration. Its 25mA current rating and 24VDC voltage make it versatile for consumer electronics and industrial control systems.
Washable:
No
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
2,000 Cycles
Termination Style:
Gull Wing
Operating Temperature:
-20°C ~ 85°C
Height Above Board:
0.175" (4.45mm)
Mechanical Life:
2,000 Cycles
Number of Positions:
9
Actuator Level:
Raised
Voltage Rating:
24VDC
REACH Status:
REACH Unaffected
edacadModel:
KAE09LGGT Models
edacadModelUrl:
/en/models/3749662
Package:
Tube
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
0.940" (23.90mm)
Circuit:
SPST
standardLeadTime:
13 Weeks
Current Rating (Amps):
25mA
Features:
-
Mounting Type:
Surface Mount
Series:
KAE
Body Material:
-
Actuator Type:
Slide (Standard)
Pitch:
0.100" (2.54mm), Full
Contact Material:
Copper
Base Product Number:
KAE09
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search KAE09LGGT on website for other similar products.
We accept all major payment methods for all products including ET10886668. Please check your shopping cart at the time of order.
You can order E-Switch brand products with KAE09LGGT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIP Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch KAE09LGGT. You can also check on our website or by contacting our customer support team for further order details on E-Switch KAE09LGGT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10886668 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10886668.
Yes. We ship KAE09LGGT Internationally to many countries around the world.
The E-Switch KAE09LGGT is a high-grade Dip Switch that offers precision in electronic circuit configuration. Created with a Surface Mount Slide (Standard) Actuator, this 9-position switch is provides reliability and ease of use. With a current rating of 25mA and a maximum voltage of 24VDC, it is well-suited for different applications.
The KAE09LGGT is designed to provide configurable circuit control, allowing users to select from 9 different positions to set the switch according to their requirements.
Featuring a Surface Mount Slide Actuator, the KAE09LGGT offers straightforward manual operation. Users can easily slide the actuator to the desired position, ensuring precise and reliable circuit configuration.
The KAE09LGGT is built to handle the needs of numrous environments. Its rugged design ensures reliable performance under mechanical stress, vibrations, and temperature fluctuations.
The E-Switch KAE09LGGT: Application Potential
The KAE09LGGT Dip Switch's versatility makes it applicable in various industries, like:
