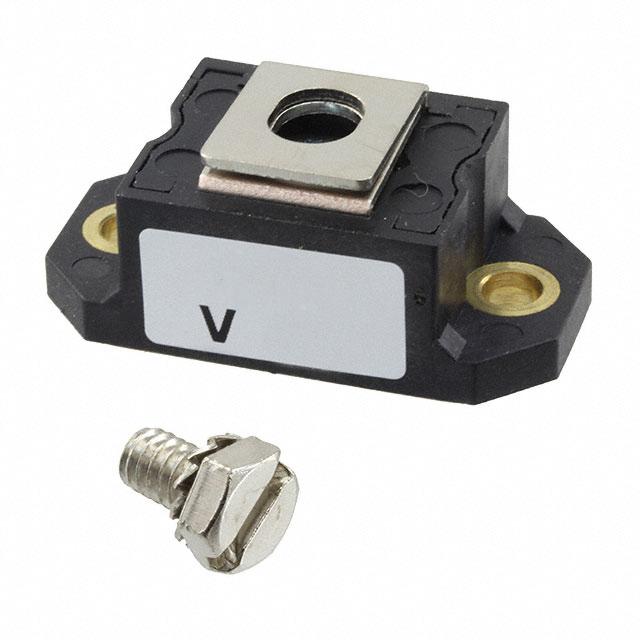

Vishay General Semiconductor - Diodes Division VS-120NQ045PBF
Product Information
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
D-67 HALF-PAK
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
120A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
630 mV @ 120 A
Package:
Bulk
Voltage - DC Reverse (Vr) (Max):
45 V
Capacitance @ Vr, F:
5200pF @ 5V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
17 Weeks
Current - Reverse Leakage @ Vr:
10 mA @ 45 V
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
D-67 HALF-PAK
Technology:
Schottky
Base Product Number:
120NQ045
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search VS-120NQ045PBF on website for other similar products.
We accept all major payment methods for all products including ET20811325. Please check your shopping cart at the time of order.
You can order Vishay General Semiconductor - Diodes Division brand products with VS-120NQ045PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diodes - Rectifiers - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay General Semiconductor - Diodes Division VS-120NQ045PBF. You can also check on our website or by contacting our customer support team for further order details on Vishay General Semiconductor - Diodes Division VS-120NQ045PBF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20811325 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay General Semiconductor - Diodes Division" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20811325.
Yes. We ship VS-120NQ045PBF Internationally to many countries around the world.
This is manufactured by Vishay General Semiconductor - Diodes Division. The manufacturer part number is VS-120NQ045PBF. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in d-67 half-pak. In addition, it is reach unaffected. It features a 120a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 630 mv @ 120 a. It is shipped in bulk package . While it has maximum reverse voltage of 45 v. Moreover, the product has a 5200pf @ 5v, 1mhz capacitance. Its typical moisture sensitivity level is 1 (unlimited). It has a long 17 weeks standard lead time. 10 ma @ 45 v is the reverse leakage value of a bespoke product. The product is available in chassis mount configuration. d-67 half-pak is the supplier device package value. This product use schottky technology. Moreover, it corresponds to 120nq045, a base product number of the product. The product is designated with the ear99 code number.
