ON Semiconductor SS0503EC-TR-H
Product Information
Base Part Number:
SS0503
Detailed Description:
Diode Schottky 30V 500mA Surface Mount 2-ECSP1008
Reverse Recovery Time (trr):
10ns
Current - Reverse Leakage @ Vr:
100µA @ 15V
Operating Temperature - Junction:
-55°C ~ 125°C
Mounting Type:
Surface Mount
Voltage - DC Reverse (Vr) (Max):
30V
Capacitance @ Vr, F:
6pF @ 10V, 1MHz
Voltage - Forward (Vf) (Max) @ If:
560mV @ 500mA

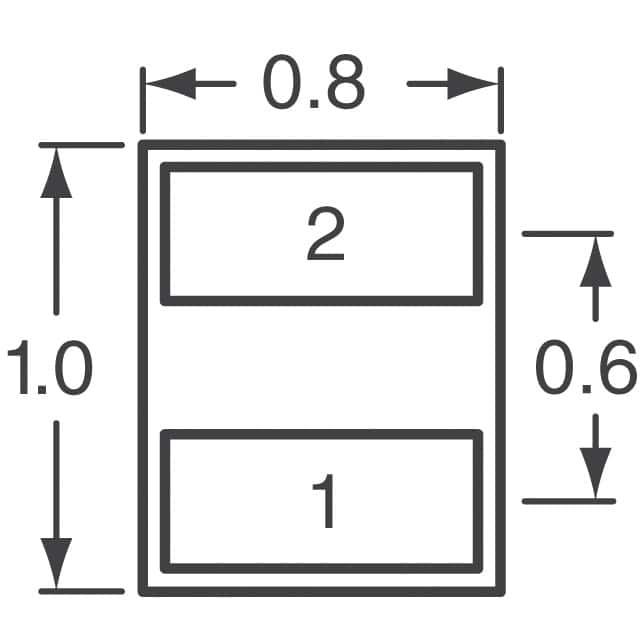

Supplier Device Package:
2-ECSP1008
Packaging:
Cut Tape (CT)
Customer Reference:
Current - Average Rectified (Io):
500mA
Package / Case:
2-UDFN
Diode Type:
Schottky
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Manufacturer:
ON Semiconductor
Checking for live stock
FAQs
Yes. You can also search SS0503EC-TR-H on website for other similar products.
We accept all major payment methods for all products including ET14544713. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with SS0503EC-TR-H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diodes - Rectifiers - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor SS0503EC-TR-H. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor SS0503EC-TR-H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14544713 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14544713.
Yes. We ship SS0503EC-TR-H Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is SS0503EC-TR-H. Base Part Number: ss0503. It features diode schottky 30v 500ma surface mount 2-ecsp1008. It has a trr (reverse recovery time) of 10ns. 100µa @ 15v is the reverse leakage value of a bespoke product. The product operate at temperatures ranging from -55°c ~ 125°c. The product is available in surface mount configuration. While it has maximum reverse voltage of 30v. Moreover, the product has a 6pf @ 10v, 1mhz capacitance. The product has a maximum forward voltage of 560mv @ 500ma. 2-ecsp1008 is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. It features a 500ma of average rectified current. Moreover, the product comes in 2-udfn. It is designed with a schottky diode. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The on semiconductor's product offers user-desired applications.
