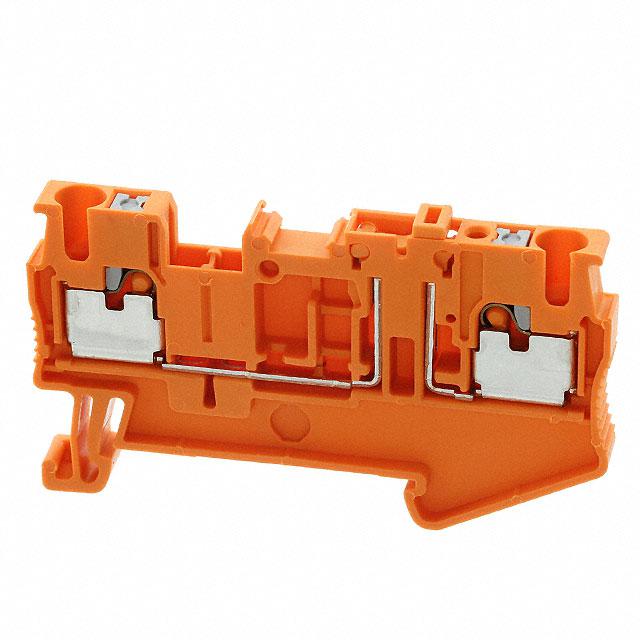

Phoenix Contact 3212316
Product Information
Number of Levels:
Single
Current Rating:
20A
Standards Met:
ABS, CSA Certified, cUL Recognized, cULus Recognized, DNV GL, EAC Certified, IECEE CB Scheme, LR, UL Recognized, VDE
Voltage Rating:
400 V
Series:
PT 2,5-MT OG
Colour:
Orange
Model Number:
PT 2,5-MT OG
American Wire Gauge:
26 → 12AWG
Termination Method:
Push In
Cable CSA:
2.5mm²
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Disconnect
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300V
standardLeadTime:
5 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
Switch, Knife
Voltage - IEC:
400V
Features:
-
Color:
Orange
Series:
CLIPLINE PT
Fuse Type:
-
Current - UL:
20 A
Number of Levels:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3212316 on website for other similar products.
We accept all major payment methods for all products including ET13268098. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3212316 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Channel category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3212316. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3212316.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13268098 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13268098.
Yes. We ship 3212316 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 3212316. The product carries single levels. The product has a current rating of 20a. The product complies with all safety standards, such as abs, csa certified, cul recognized, culus recognized, dnv gl, eac certified, iecee cb scheme, lr, ul recognized, vde. Moreover, the product has a nominal 400 v voltage rating. The product pt 2,5-mt og, is a highly preferred choice for users. It has a decent orange colour. It has a model number pt 2,5-mt og. Features 26 → 12awg - American Wire Gauge. It allows push in termination method. The cross section area of the cable includes 2.5mm². It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in disconnect configuration. The product carries possible position value of 2. A 0.14-4mm² of wire gauge. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . It has a stripping length of 10mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 20 a. While 12-26 awg is its range or wire gauge. While 300v is the typical voltage of the product. It has a long 5 weeks standard lead time. The built-in terminal is 5.2mm wide. Disconnect type - switch, knife. The nominal voltage of the product is 400v. It has a classic orange colour. The product clipline pt, is a highly preferred choice for users. The typical current includes 20 a. The product carries 1 levels. The product is designated with the ear99 code number.
