Frequency Range:
1.217GHz ~ 1.237GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
UHF (1GHz ~ 2GHz)
Height (Max):
0.642" (16.30mm)
REACH Status:
REACH Unaffected
Applications:
Beidou, Galileo, GLONASS, GPS
Gain:
2.09dBi, -3.22dBi, 1.39dBi, 1.56dBi
Number of Bands:
4
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
RF Family/Standard:
Navigation
Frequency (Center/Band):
1.227GHz, 1.561GHz, 1.575GHz, 1.602GHz
Termination:
SMA Male
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
Cable - 3m, LNA, Filter
Mounting Type:
Magnetic
Antenna Type:
Module
Series:
ATGGB
VSWR:
2
Return Loss:
-3.85dB, -15.41dB, -18.37dB, -39.62dB
ECCN:
EAR99

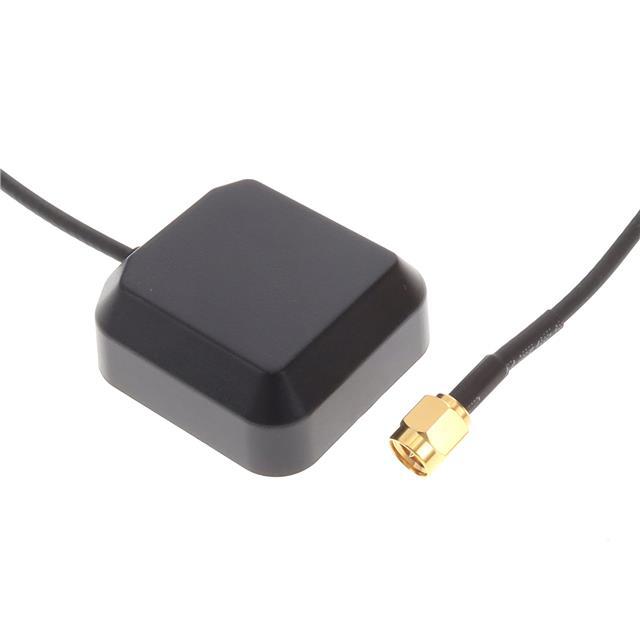

This is manufactured by YIC. The manufacturer part number is ATGGBL24138M-SMA-3. The frequency range includes 1.217ghz ~ 1.237ghz, 1.559ghz ~ 1.563ghz, 1.574ghz ~ 1.576ghz, 1.594ghz ~ 1.61ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a uhf (1ghz ~ 2ghz) frequency group. Additionally, the 0.642" (16.30mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in beidou, galileo, glonass, gps. The 2.09dbi, -3.22dbi, 1.39dbi, 1.56dbi is the gain value of a bespoke product. It contains 4 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The standard RF Family of the product includes navigation. While it has a frequency of 1.227ghz, 1.561ghz, 1.575ghz, 1.602ghz at center/band. The product features sma male termination style. It has a long 12 weeks standard lead time. The splendid features of the product include cable - 3m, lna, filter. The product is available in magnetic configuration. It is a module antenna. The product atggb, is a highly preferred choice for users. VSWR Information: 2. It has a return loss of -3.85db, -15.41db, -18.37db, -39.62db. The product is designated with the ear99 code number.
