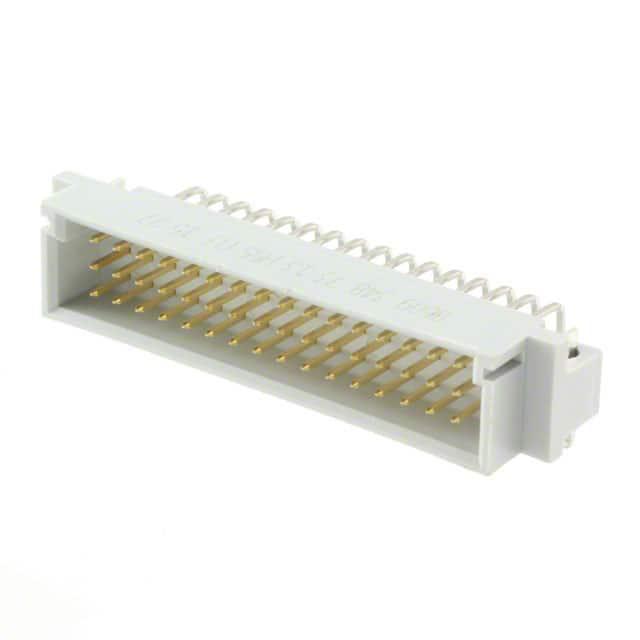

Amphenol FCI 86093487313H55ELF

86093487313H55ELF Amphenol FCI
86093487313H55ELF
Amphenol FCI

Product Information

Row Loading:
A+B+C
Current Rating:
1.5A
Mounting Type:
Through Hole
Voltage Rating:
1 kV ac
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
Solder
Housing Material:
Glass Filled Thermoplastic Polyester
Maximum Contact Resistance:
20mΩ
Number of Rows:
3
Minimum Operating Temperature:
-55°C
Pitch:
2.54mm
Number of Contacts:
48
Type:
Rack Connector
Maximum Operating Temperature:
+125°C
Contact Material:
Copper Alloy
Manufacturer Standard Lead Time:
6 Weeks
Style:
C/2 (1/2 C)
Current Rating:
1.5A
Material - Insulation:
Polyester Thermoplastic
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
48
Number of Rows:
3
Standard Package:
16
Manufacturer:
Amphenol FCI
Material Flammability Rating:
UL94 V-0
Connector Type:
Header, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Level, Class:
2
Termination:
Solder
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
8609
Packaging:
Tray
Pitch:
0.100" (2.54mm)
Other Names:
609-4951 86093487313H55ELF-ND
Number of Positions Loaded:
All
RoHs Compliant
Checking for live stock

This is manufactured by Amphenol FCI. The manufacturer part number is 86093487313H55ELF. It contains a+b+c row loading . The product has a current rating of 1.5a. The product is available in through hole configuration. Moreover, the product has a nominal 1 kv ac voltage rating. In addition, male is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. The product also features robust glass filled thermoplastic polyester housing material. Additionally, it has a maximum 20mω contact resistance . It comes in 3 of rows. Whereas, the minimum operating temperature of the product is -55°c. Moreover, the product is 2.54mm. The product contains 48 contacts. It comes in rack connector configuration. It has a maximum operating temperature of +125°c. The product is made from sturdy copper alloy materials. It has typical 6 weeks of manufacturer standard lead time. Additionally, the product is designed with c/2 (1/2 c) Style. It is designed from highly reliable polyester thermoplastic insulating material. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 48. It is available in the standard package of 16. The amphenol fci's product offers user-desired applications. It carries ul94 v-0 of material flammability rating. header, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product consists of 2 levels, classes. The product features solder termination style. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product 8609, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, the product is 0.100" (2.54mm). Alternative Names include 609-4951 86093487313h55elf-nd. However, all is the Number of Positions Loaded.

pdf icon
Datasheet 86093487313H55ELF(Technical Reference)
pdf icon
8609-2003 Drawing(Datasheets)
