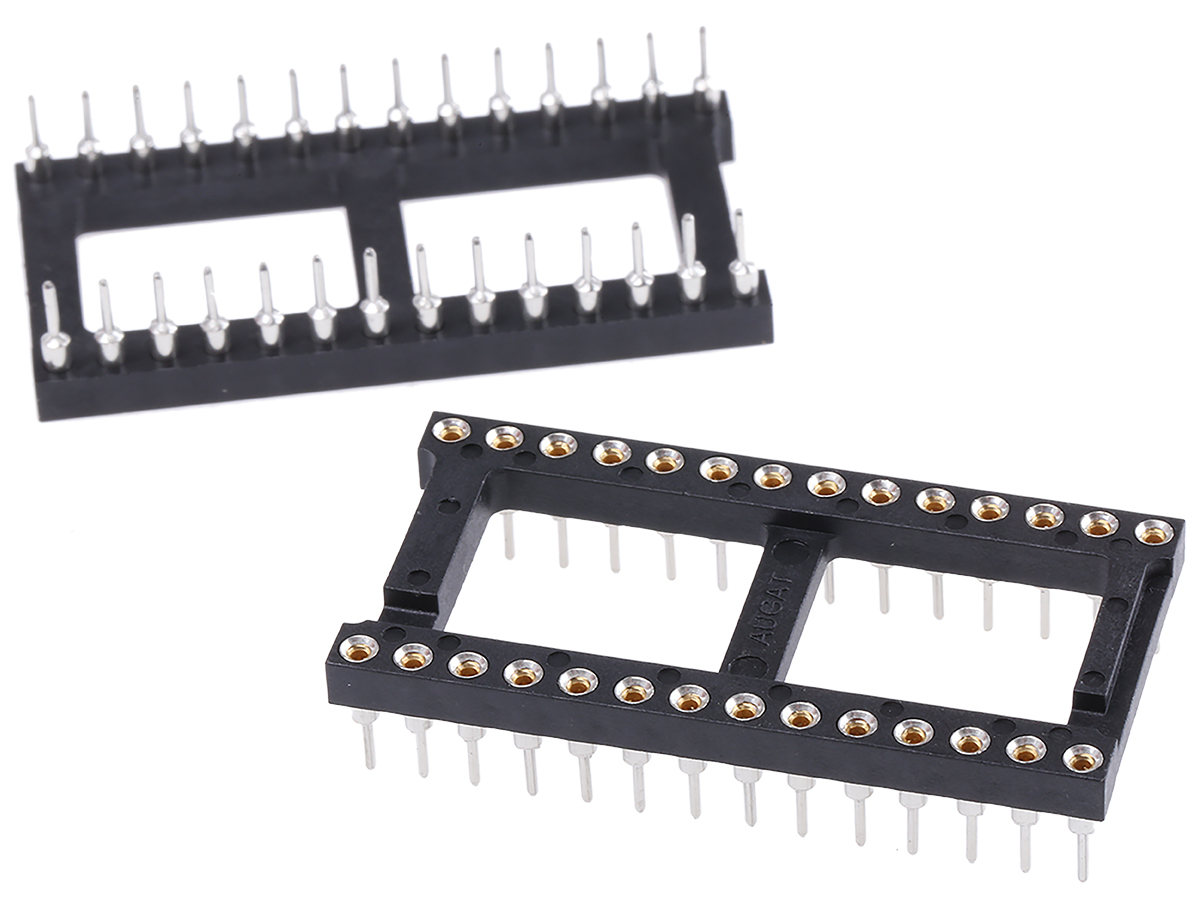

TE Connectivity 2.54mm Pitch Vertical 28 Way, Through Hole Stamped pin Open Frame IC Dip Socket, 3A

9-1437539-2 TE Connectivity 2.54mm Pitch Vertical 28 Way, Through Hole Stamped pin Open Frame IC Dip Socket, 3A
TE Connectivity

Product Information

Row Width:
15.24mm
Number of Contacts:
28
Current Rating:
3A
Dimensions:
35.56 x 4.57 x 17.78mm
Mounting Type:
Through Hole
Minimum Operating Temperature:
-55°C
Contact Material:
Beryllium Copper
Termination Method:
Solder
Length:
35.56mm
Housing Material:
PET
Width:
4.57mm
Depth:
17.78mm
Contact Plating:
Gold
Pitch:
2.54mm
Orientation:
Vertical
Frame Type:
Open Frame
Maximum Operating Temperature:
+105°C
Pin Type:
Stamped
Moisture Sensitivity Level (MSL):
Vendor Undefined
HTSUS:
8536.69.4040
Package:
Tube
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 2.54mm Pitch Vertical 28 Way Through Hole Stamped pin Open Frame IC Dip Socket 3A manufactured by TE Connectivity. The manufacturer part number is 9-1437539-2. Its row is 15.24mm in width . The product contains 28 contacts. The product has a current rating of 3a. The given dimensions of the product include 35.56 x 4.57 x 17.78mm. The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is -55°c. The product is made from sturdy beryllium copper materials. It allows solder termination method. Its accurate length is 35.56mm. The product also features robust pet housing material. Furthermore, the product is 4.57mm wide. The product comes in 17.78mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product has a vertical orientation. The frame is designed as [Fram Type] type. It has a maximum operating temperature of +105°c. It contains a stamped type pin . Its typical moisture sensitivity level is vendor undefined. It is assigned with possible HTSUS value of 8536.69.4040. It is shipped in tube package . The product is rohs non-compliant. In addition, it is reach info available upon request. The product is designated with the ear99 code number.
