Altera PL-USB-BLASTER-RCN USB Blaster Programmer

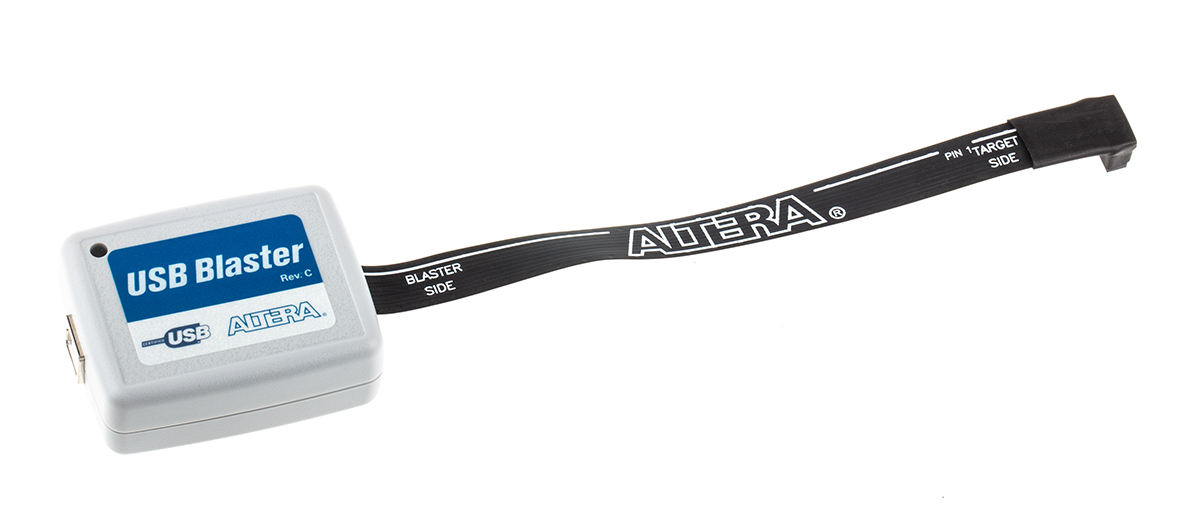

The Altera PL-USB-BLASTER-RCN is a USB-to-JTAG programming cable designed for in-system configuration of Altera (now Intel) FPGAs and CPLDs. With support for JTAG, Passive Serial and Active Serial modes, this tool connects your PC’s USB port to the target device’s 10-pin header and enables rapid iteration of design changes. It is compatible with a wide range of device families, including Stratix, Cyclone, MAX, Arria and APEX.

How It Benefits Users

• Single-cable USB interface simplifies connection to PC and programmer hardware.
• Broad compatibility with Altera/Intel FPGA and CPLD device families.
• Industry-standard 10-pin header connection aligns with target boards for in-system programming.
• RoHS-compliant and supplied with a USB cable and target cable for immediate use.
• Works fine with Windows and Linux host systems for development flexibility.

Perfect for Development and Production Use

The PL-USB-BLASTER-RCN is built to provide reliable programming during both prototyping and volume production. The USB interface delivers 5 V from the host, while the unit supports target I/O voltages as low as ~1.2 V for advanced devices. Its compact form factor (approx. 63.5 × 50.8 mm) makes it easy to fit into development benches or production jigs.

Application Versatility of the Altera USB Blaster Programmer

• Engineering workstations for programming Altera/Intel FPGAs during design iteration.
• Production lines for in-circuit PCB configuration with Altera devices.
• Test benches for automated boundary-scan, configuration verification and system bring-up.
• Educational and lab environments.
• Board-level development kits and evaluation.

For more information please check the datasheets.
