Sefram DAS60 Data Acquisition, 1Msps

  • Enrgtech Part No: ET18339231
  • |
  • Manufacturer Part No:

    DAS60

  • |
  • Manufacturer: Sefram
DAS60 Sefram Data Acquisition, 1Msps
DAS60
DAS60
ET18339231
DAS60 Sefram Data Acquisition, 1Msps
Sefram

Product Information

Power Source:
Battery, Mains
Weight:
2.5kg
Connectivity:
Ethernet, USB
Maximum Operating Temperature:
+40°C
Model Number p:
DAS60
Output Type:
Digital
Height:
105mm
Width:
210mm
Length:
295mm
Battery Life:
4 h, 9 h
Number of Input Channels:
6
Input Type:
Analogue, Digital
Battery Type:
Li-Ion
Sampling Rate:
1Msps
On Board Memory:
64000MB
Resolution:
14 bit
Minimum Operating Temperature:
0°C
RoHs Compliant
Checking for live stock

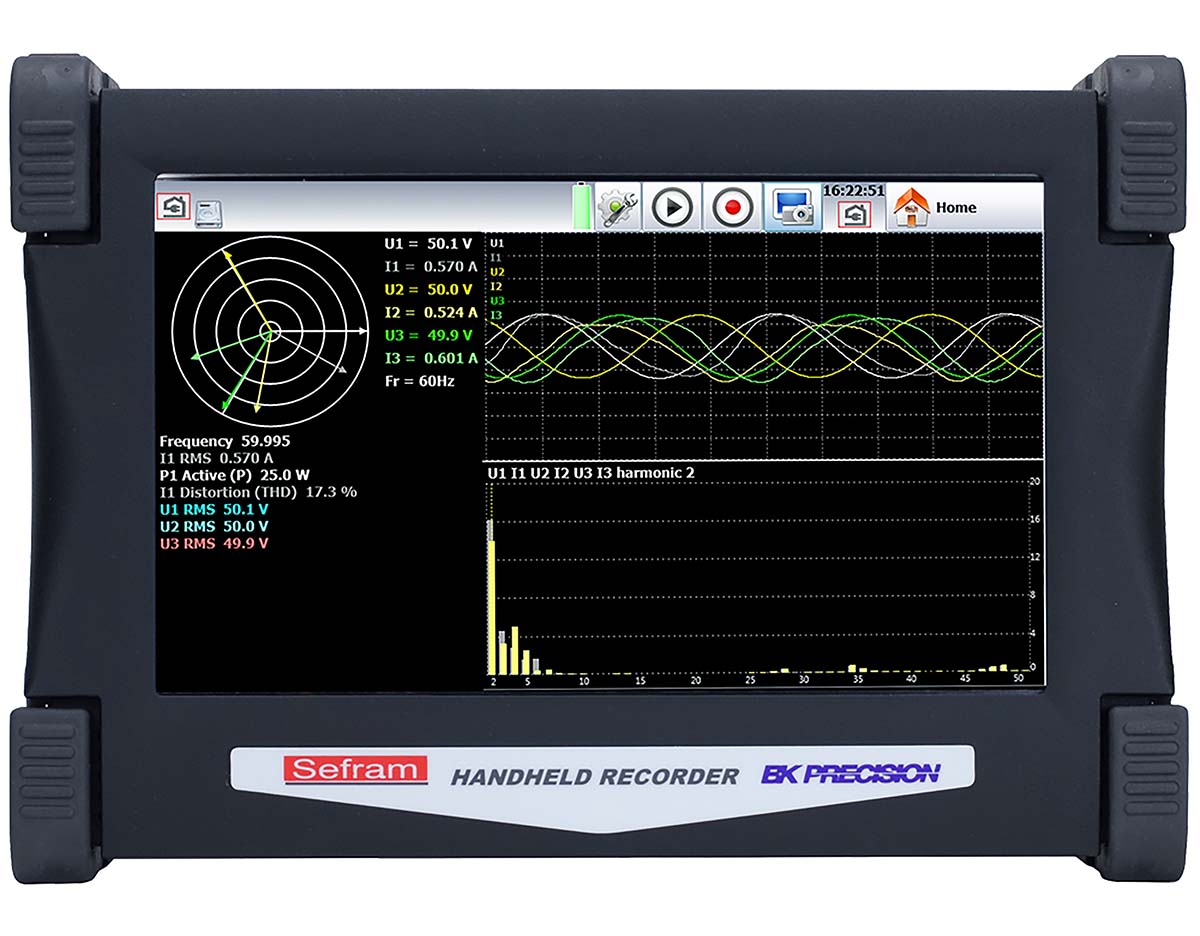

The Sefram DAS60 is a rugged, portable high-speed data acquisition recorder that delivers powerful performance in a compact form. It supports six isolated universal input channels, ultra-fast sampling at 1 million samples per second, and boasts an expansive 64 GB of internal solid-state storage. With up to 9.5 hours of battery life and a large, responsive 10-inch touchscreen, it’s engineered for demanding applications ranging from electrical power analysis to industrial troubleshooting.

Why Choose the Sefram DAS60 Data Acquisition Recorder?

Choosing the DAS60 means choosing flexibility and quality under pressure. Its combination of high-speed sampling, multi-signal compatibility (voltage, current, temperature, and frequency), and premium isolation (CAT III 600 V) makes it ideal for real-world electrical diagnostics. The intuitive touchscreen interface, robust memory, and versatile connectivity (Ethernet, USB, optional Wi‑Fi/VNC, printer) ensure seamless setup and analysis. This is not just a recorder, it’s a portable, all-in-one data solution that adapts to your workflow.

Product Core Highlights – Features & Specifications

  • High-Speed Sampling – Up to 1 MSa/s in memory mode; 100 kHz bandwidth captures transient events with precision.
  • Wide Input Range – Handles from ±1 mV up to ±500 VDC (or 424 VRMS) for versatile voltage recording.
  • Safe & Isolated – CAT III 600 V isolation for reliable, safe operation in industrial settings.
  • Large Solid-State Memory – 64 GB built-in storage captures extensive data sessions without interruption.

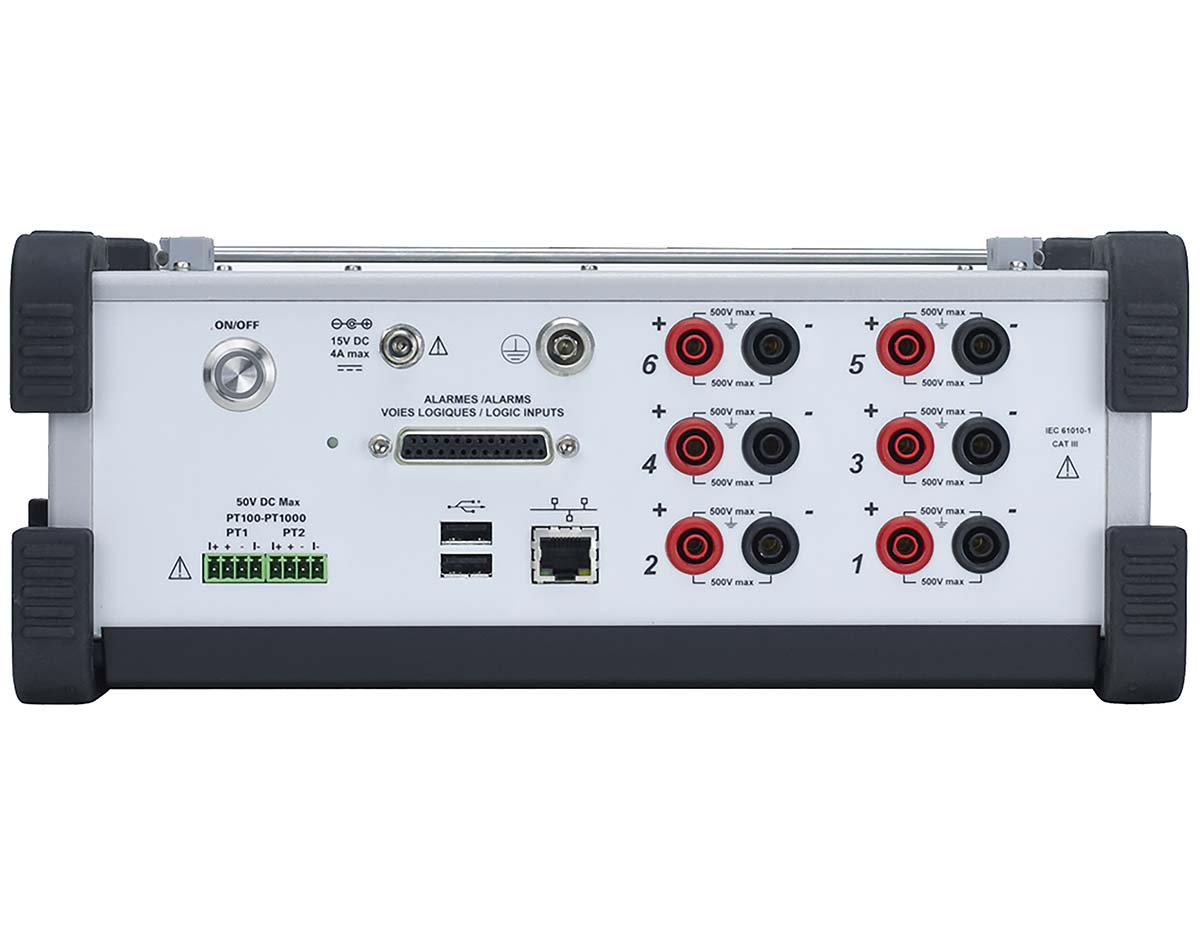

  • Six Universal Analogue Inputs – Acquire mixed signals (voltage, current, temperature, frequency) concurrently across channels.
  • RTD Temperature Support – Includes 2 dedicated PT100/PT1000 inputs for accurate temperature tracking.
  • Large Touchscreen Interface – A 10-inch TFT display enables easy navigation, zooming, cursor placement, and data scrolling.
  • Logic & Alarm I/O – 16 logic input channels plus alarm outputs extend monitoring and control capabilities.
  • Long Battery Runtime – Up to 9.5 hours (standby mode) ensures extended field usage.
  • Connectivity Options – Equipped with USB hosts and LAN (Ethernet), Wi-Fi (via USB dongle), and VNC remote control, offering flexible data access.
  • Power Analysis – Built-in mode supports single- and three-phase power diagnostics up to 400 Hz.

pdf icon
Quickstart Guide - DAS60(Technical Reference)
pdf icon
Datasheet - DAS60(Technical Reference)
pdf icon
User Manual - DAS60(Technical Reference)
pdf icon
UN38.3 Lithium Battery Test Summary(Technical Reference)
