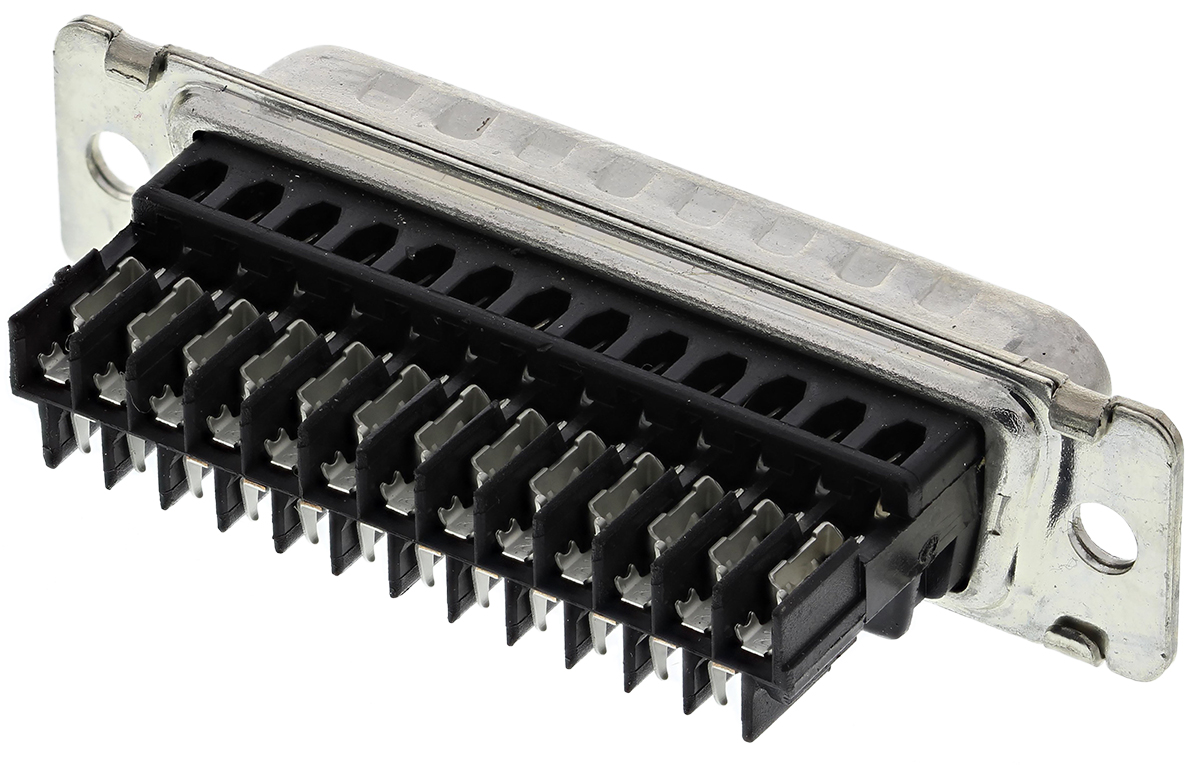

TE Connectivity AMPLIMITE HDE-20 Series 2.76mm Pitch 25 Way IDC D-sub Connector, Plug, Steel Shell

Product Information
Series:
Amplimite HDE-20
Dimensions:
53.41 x 12.92 x 22.58mm
Mounting Type:
Cable Mount
Voltage Rating:
250.0 V
Gender:
Male
Body Orientation:
Straight
Termination Method:
IDC
Length:
53.41mm
Housing Material:
Steel
Width:
12.92mm
Depth:
22.58mm
Contact Plating:
Gold over Nickel
Pitch:
2.76mm
Number of Contacts:
25
Contact Material:
Phosphor Bronze
RoHs Compliant

Technical Documents
TE Connectivity
745494 Customer Drawing(Technical Reference)
Checking for live stock

More Information

AMPLIMITE D-sub Connector, HDE-20 IDC Series, Metal Shell, Cable Mount AMPLIMITE HDE-20 metal shell IDC d-sub connectors for discrete wire and jacketed cable. These HDE-20 IDC d-sub cable plug and socket connectors have a tin plated steel shell and a 94V-0 rated...
AMPLIMITE D-sub Connector, HDE-20 IDC Series, Metal Shell, Cable Mount AMPLIMITE HDE-20 metal shell IDC d-sub connectors for discrete wire and jacketed cable. These HDE-20 IDC d-sub cable plug and socket connectors have a tin plated steel shell and a 94V-0 rated black thermoplastic insert and are pre-loaded with duplex plated phosphor bronze IDC contacts with gold on the mating end and tin on the crimping end. There are differing contact plating and wire size options for these HDE-20 IDC d-sub connectors, please refer to manufacturer datasheet for details. The maximum wire insulation thickness that these contacts accept is 0.38mm, and the maximum wire insulation diameter is 1.52mm. The HDE-20 series of IDC d-sub cable connectors will mate with the HDP and HD-20 board mount range of d-sub connectors For suitable cable clamps or backshells please see stock numbers 450-9113 , 717-4596 and 680-9131 typically For suitable female screwlocks and male screw retainers please see stock numbers 450-9258 , 717-4473 , 450-9208 and 717-4498 typically. For locking post assembly see stock number 450-9365 For spring latch see stock number 450-9321 For latching blocks with threaded hole see 450-9371 and 717-4656 For latching blocks with slot recess and thru' hole see stock number 680-9392 For suitable tooling see pistol grip tool handle (stock number 120-4477 ), pistol grip head (stock number 120-4483 ) and T-handle insertion tool (stock number 536-9786 ) Additional Data Stock Number Manufacturer Part Number Contact Plating Contact Wire Size 536-9736 1-745491-7 0.00076 gold 26-22 AWG 718-4786 1-745491-8 Gold Flash 26-22 AWG 680-8803 1-745492-8 0.00076 gold 26-22 AWG 536-9685 1-745492-9 0.00076 gold 22-20 AWG 718-4742 2-745492-0 Gold Flash 26-22 AWG 536-9742 1-745493-4 0.00076 gold 26-22 AWG 719-8750 1-745493-6 0.00076 gold 30-26 AWG 536-9764 1-745495-8 0.00076 gold 26-22 AWG 718-4770 2-7...
