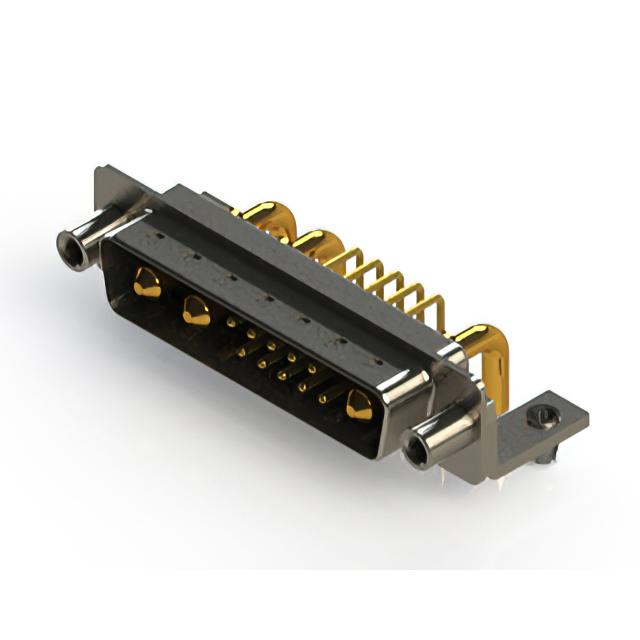

EDAC Inc. 629-13W3640-2ND

629-13W3640-2ND EDAC Inc.
EDAC Inc.

Product Information

Shell Size, Connector Layout:
3 (DB, B) - 13C3, 13W3
Flange Feature:
Mating Side (M3)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub, Combo
Contact Finish Thickness:
30.0µin (0.76µm)
Dielectric Material:
Polyester Thermoplastic
Number of Positions:
13 (10 + 3 Power)
REACH Status:
REACH Unaffected
edacadModel:
629-13W3640-2ND Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/13787125
Voltage Rating:
125V
Wire Gauge:
-
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
5A, 20A
Backset Spacing:
0.370" (9.40mm)
Ingress Protection:
-
Features:
Board Lock, Grounding Indents, Mounting Brackets
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
629-C
Shell Material, Finish:
Steel, Nickel Plated
Packaging:
Tray
Contact Type:
Signal and Power
Contact Material:
Copper Alloy
Base Product Number:
629-13W
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 629-13W3640-2ND. 3 (db, b) - 13c3, 13w3 is the shell size and connector layout. Furthermore, mating side (m3) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub, combo connector style. It has 30.0µin (0.76µm) of contact finishing thickness. Moreover, the product is constructed from highly polyester thermoplastic dielectric material. The product carries possible position value of 13 (10 + 3 power). In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 125v voltage rating. plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 5a, 20a. Furthermore, 0.370" (9.40mm) is the given bracket spacing. The splendid features of the product include board lock, grounding indents, mounting brackets. The product is available in through hole, right angle configuration. It has a classic black colour. The product 629-c, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. In addition, tray is the available packaging type of the product. It has typical contact type of signal and power. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 629-13w, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
629C,630C Series Ordering Guide(Datasheets)
pdf icon
629-13W3640-2ND Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
