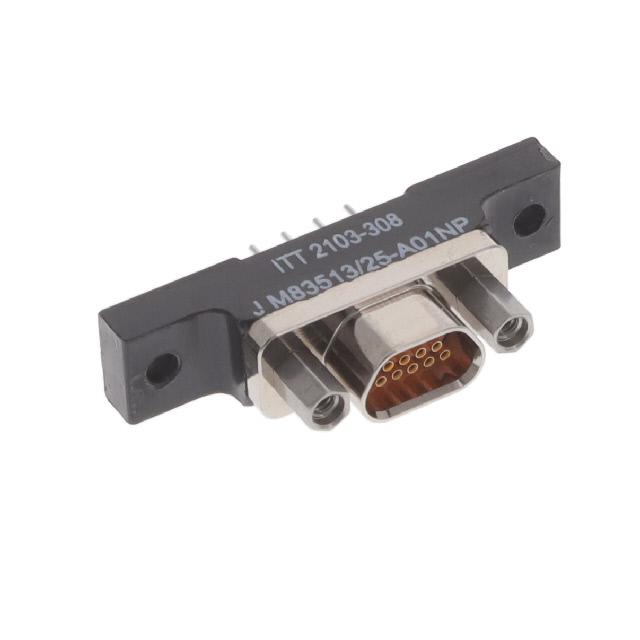

ITT Cannon, LLC M83513/25-A01NP
Product Information
Shell Size, Connector Layout:
0.050 Pitch x 0.050 Row to Row
Flange Feature:
Mating Side, Female Screwlock (2-56)
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-
Connector Style:
D-Type, Micro-D
Contact Finish Thickness:
-
Dielectric Material:
Liquid Crystal Polymer (LCP)
Number of Positions:
9
Voltage Rating:
-
edacadModel:
M83513/25-A01NP Models
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/13279965
Package:
Bag
Wire Gauge:
-
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
34 Weeks
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
-
Series:
Military, MIL-C-83513, M83513
Shell Material, Finish:
Aluminum Alloy, Nickel Plated, Electroless
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search M83513/25-A01NP on website for other similar products.
We accept all major payment methods for all products including ET20296880. Please check your shopping cart at the time of order.
You can order ITT Cannon, LLC brand products with M83513/25-A01NP directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ITT Cannon, LLC M83513/25-A01NP. You can also check on our website or by contacting our customer support team for further order details on ITT Cannon, LLC M83513/25-A01NP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20296880 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ITT Cannon, LLC" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20296880.
Yes. We ship M83513/25-A01NP Internationally to many countries around the world.
This is manufactured by ITT Cannon, LLC. The manufacturer part number is M83513/25-A01NP. 0.050 pitch x 0.050 row to row is the shell size and connector layout. Furthermore, mating side, female screwlock (2-56) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. It comes in d-type, micro-d connector style. Moreover, the product is constructed from highly liquid crystal polymer (lcp) dielectric material. The product carries possible position value of 9. It comes in 2 of rows. It is shipped in bag package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 34 weeks standard lead time. Additionally, the product's output is 3a. The product is available in through hole configuration. The product military, mil-c-83513, m83513, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as aluminum alloy, nickel plated, electroless. It has typical contact type of signal. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
