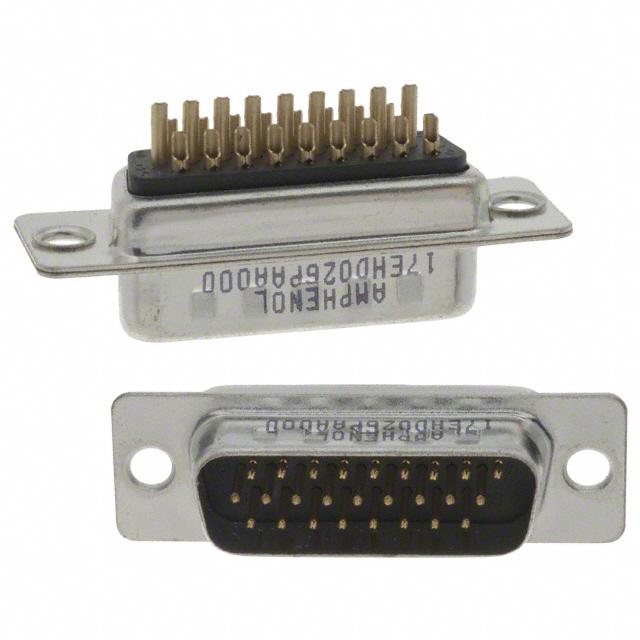

Amphenol ICC (Commercial Products) 17EHD-026-P-AA-0-00

17EHD-026-P-AA-0-00 Amphenol ICC (Commercial Products)
17EHD-026-P-AA-0-00
Amphenol ICC (Commercial Products)

Product Information

Shell Size, Connector Layout:
2 (DA, A) High Density
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub, High Density
Contact Finish Thickness:
Flash
Dielectric Material:
Polyamide (PA), Nylon, Glass Filled
Number of Positions:
26
Voltage Rating:
125V
edacadModel:
17EHD-026-P-AA-0-00 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1242556
Package:
Tray
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder Cup
standardLeadTime:
12 Weeks
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
-
Features:
Grounding Indents
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
17EHD
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
17EHD026
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (Commercial Products). The manufacturer part number is 17EHD-026-P-AA-0-00. 2 (da, a) high density is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub, high density connector style. It has flash of contact finishing thickness. Moreover, the product is constructed from highly polyamide (pa), nylon, glass filled dielectric material. The product carries possible position value of 26. Moreover, the product has a nominal 125v voltage rating. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . It also has a stamped contact form. plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder cup termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 3a. The splendid features of the product include grounding indents. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product 17ehd, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 17ehd026, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
17EHD026 17-Feb-2022(PCN Design/Specification)
pdf icon
Mult Dev Plating Chg 11/May/2018(PCN Design/Specification)
pdf icon
17EHD-026yyy-yy0(Datasheets)
