Shell Size, Connector Layout:
1 (DE, E); 1 (DE, E)
Flange Feature:
Mating Side, Female Screwlock (4-40)
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C

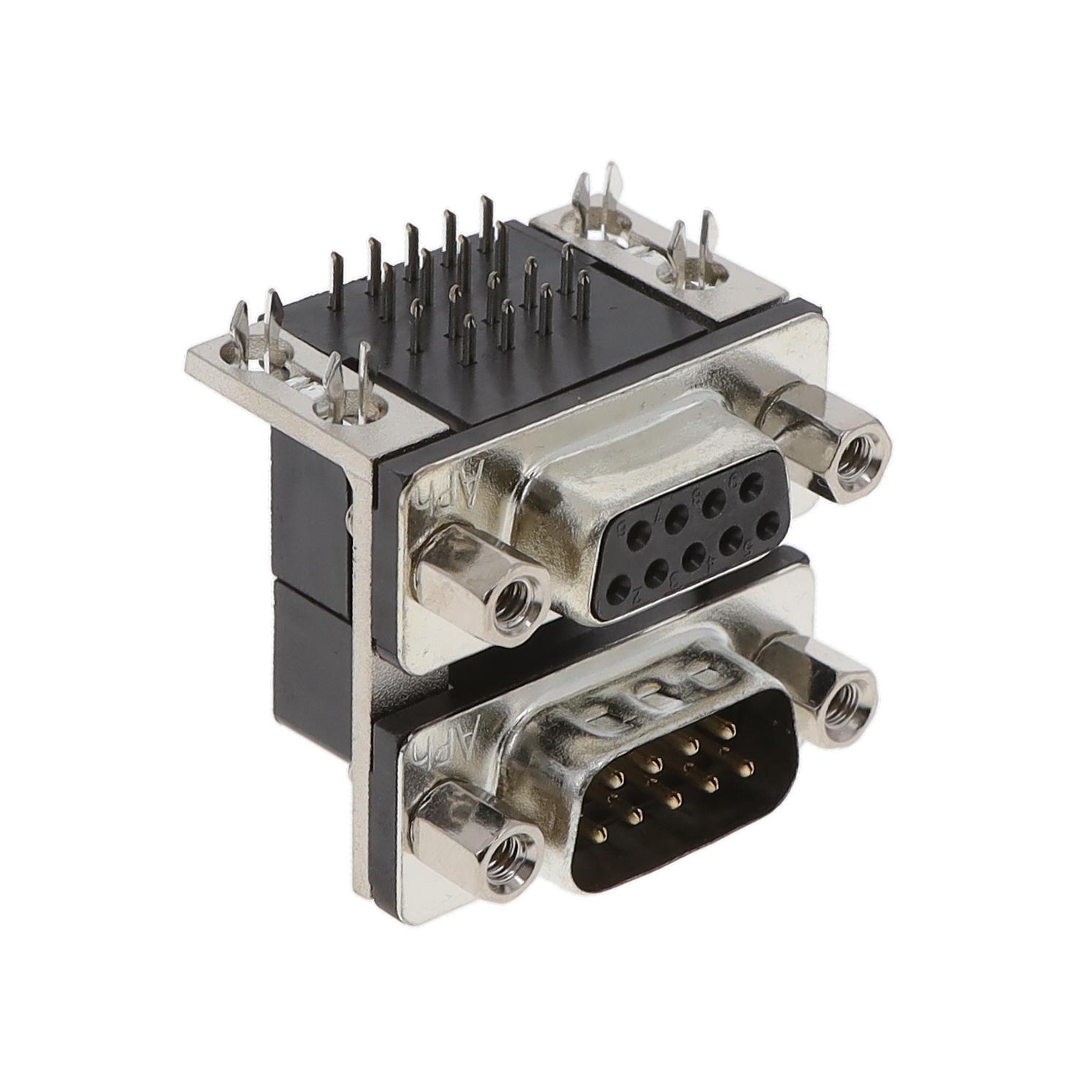

Connector Style:
D-Sub - Stacked
Contact Finish Thickness:
Flash
Dielectric Material:
Thermoplastic, Glass Filled
Number of Positions:
9, 9
Voltage Rating:
250V
edacadModel:
L17H1120131 Models
Number of Rows:
2, 2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4884707
Package:
Tray
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Plug, Male Pins; Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
3A
Backset Spacing:
0.318" (8.08mm)
Ingress Protection:
-
Features:
Board Lock, Grounding Indents, Shielded
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
17H
Shell Material, Finish:
Steel, Tin Plated
Contact Type:
Signal
Contact Material:
Brass
Base Product Number:
L17H11
ECCN:
EAR99
