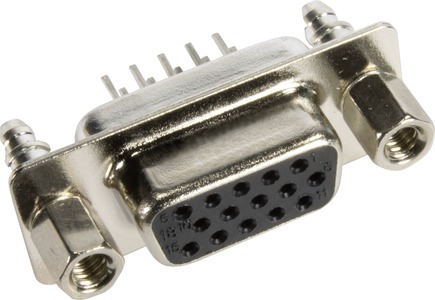

HARTING 09561517513

09561517513 HARTING
09561517513
HARTING

Product Information

Shell Size, Connector Layout:
1 (DE, E) High Density
Flange Feature:
Mating Side, Female Screwlock (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Connector Style:
D-Sub, High Density
Contact Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
15
REACH Status:
REACH Unaffected
edacadModel:
09561517513 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3180884
Voltage Rating:
-
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Receptacle, Female Sockets
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
2A
Backset Spacing:
-
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Color:
Black
Series:
-
Shell Material, Finish:
Steel, Nickel Plated
Packaging:
Tray
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09561517513. 1 (de, e) high density is the shell size and connector layout. Furthermore, mating side, female screwlock (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It comes in d-sub, high density connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. The product carries possible position value of 15. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. It also has a stamped contact form. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 2a. The splendid features of the product include board lock. The product is available in through hole configuration. It has a classic black colour. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. In addition, tray is the available packaging type of the product. It has typical contact type of signal. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
