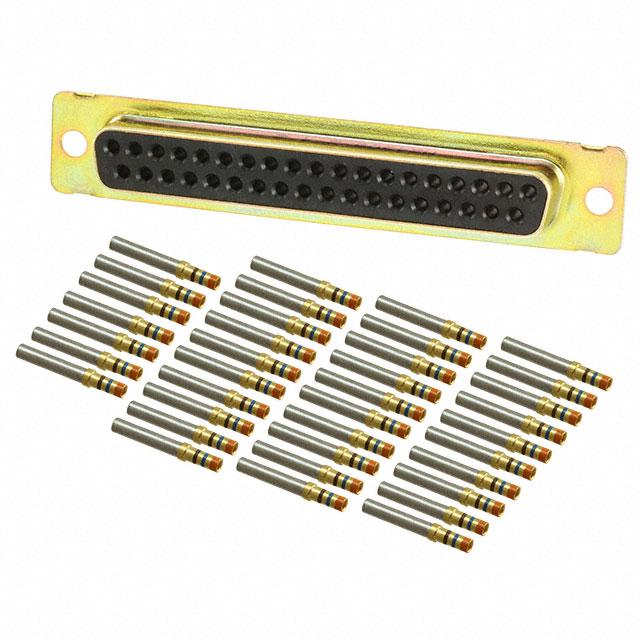

TE Connectivity Aerospace, Defense and Marine 1757820-9

1757820-9 TE Connectivity Aerospace, Defense and Marine
1757820-9
TE Connectivity Aerospace, Defense and Marine

Product Information

Shell Size, Connector Layout:
4 (DC, C)
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
-
Dielectric Material:
Polyester
Number of Positions:
37
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
1757820-9 Models
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/1145392
Package:
Bulk
Wire Gauge:
-
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Crimp
standardLeadTime:
25 Weeks
Current Rating (Amps):
7.5A
Backset Spacing:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
Military, MIL-DTL-24308, AMPLIMITE 109
Shell Material, Finish:
Steel, Yellow Chromate Plated Zinc
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
1757820
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Aerospace, Defense and Marine. The manufacturer part number is 1757820-9. 4 (dc, c) is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub connector style. Moreover, the product is constructed from highly polyester dielectric material. The product carries possible position value of 37. In addition, it is reach affected. It comes in 2 of rows. It is shipped in bulk package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features crimp termination style. It has a long 25 weeks standard lead time. Additionally, the product's output is 7.5a. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product military, mil-dtl-24308, amplimite 109, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, yellow chromate plated zinc. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 1757820, a base product number of the product. The product is designated with the ear99 code number.
