Shell Size, Connector Layout:
0.050 Pitch x 0.043 Row to Row
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4030
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Type, Micro-D
Contact Finish Thickness:
50.0µin (1.27µm)
Dielectric Material:
Liquid Crystal Polymer (LCP)
Number of Positions:
9
Voltage Rating:
-
REACH Status:
REACH info available upon request
edacadModel:
M83513/02-AC Models
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2432906
Package:
Bulk
Wire Gauge:
-
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder Cup
standardLeadTime:
21 Weeks
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
-
Series:
83513-Style Micro D Metal Shell (MDM)
Shell Material, Finish:
Aluminum, Yellow Chromate Plated Cadmium
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99

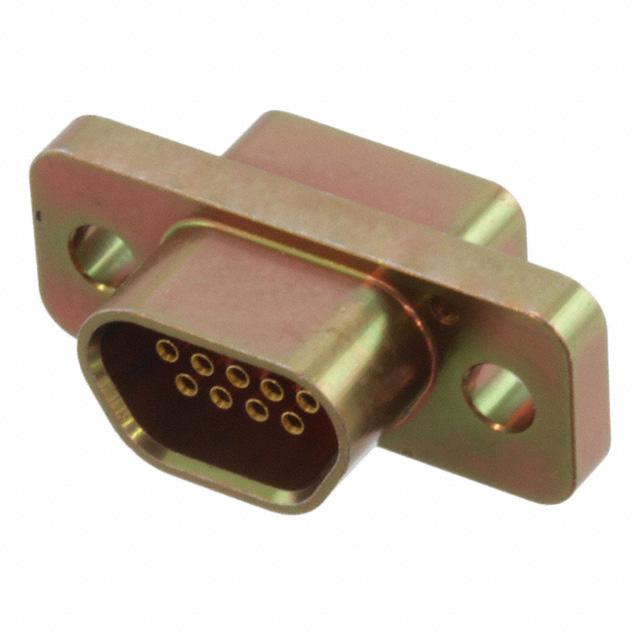

This is manufactured by ITT Cannon, LLC. The manufacturer part number is M83513/02-AC. 0.050 pitch x 0.043 row to row is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-type, micro-d connector style. It has 50.0µin (1.27µm) of contact finishing thickness. Moreover, the product is constructed from highly liquid crystal polymer (lcp) dielectric material. The product carries possible position value of 9. In addition, it is reach info available upon request. It comes in 2 of rows. It is shipped in bulk package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder cup termination style. It has a long 21 weeks standard lead time. Additionally, the product's output is 3a. The product is available in free hanging (in-line) configuration. The product 83513-style micro d metal shell (mdm), is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as aluminum, yellow chromate plated cadmium. It has typical contact type of signal. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
