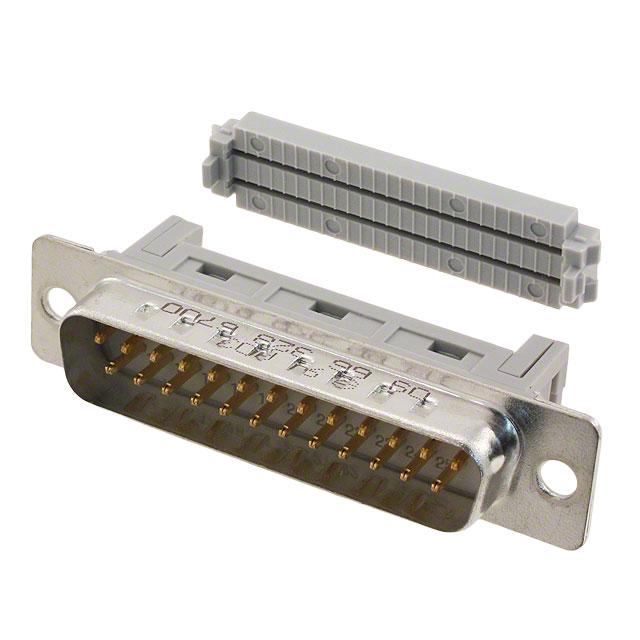

HARTING 09663286700
Product Information
Series:
D-Sub Standard
Dimensions:
53.09 x 12.55 x 18.35mm
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
IDC
Length:
53.09mm
Housing Material:
Metal
Width:
12.55mm
Depth:
18.35mm
Contact Plating:
Gold
Pitch:
2.77mm
Number of Contacts:
25
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40.0°C
Shell Size, Connector Layout:
3 (DB, B)
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Connector Style:
D-Sub
Contact Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
25
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
09663286700 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3181134
Package:
Bulk
Wire Gauge:
-
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC, Ribbon Cable
standardLeadTime:
8 Weeks
Current Rating (Amps):
2A
Backset Spacing:
-
Ingress Protection:
-
Features:
Feed Through, Grounding Indents
Mounting Type:
Panel Mount
Color:
-
Series:
-
Shell Material, Finish:
Steel
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09663286700 on website for other similar products.
We accept all major payment methods for all products including ET11214622. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09663286700 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09663286700. You can also check on our website or by contacting our customer support team for further order details on HARTING 09663286700.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11214622 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11214622.
Yes. We ship 09663286700 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09663286700. The product d-sub standard, is a highly preferred choice for users. The given dimensions of the product include 53.09 x 12.55 x 18.35mm. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has right angle body orientation. It allows idc termination method. Its accurate length is 53.09mm. The product also features robust metal housing material. Furthermore, the product is 12.55mm wide. The product comes in 18.35mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.77mm. The product contains 25 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40.0°c. 3 (db, b) is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. It comes in d-sub connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. The product carries possible position value of 25. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . plug, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features idc, ribbon cable termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 2a. The splendid features of the product include feed through, grounding indents. The product is available in panel mount configuration. It is made from durable shell materials and has an excellent finishing such as steel. It has typical contact type of signal. The product is made from sturdy copper alloy materials. The product is designated with the ear99 code number.
