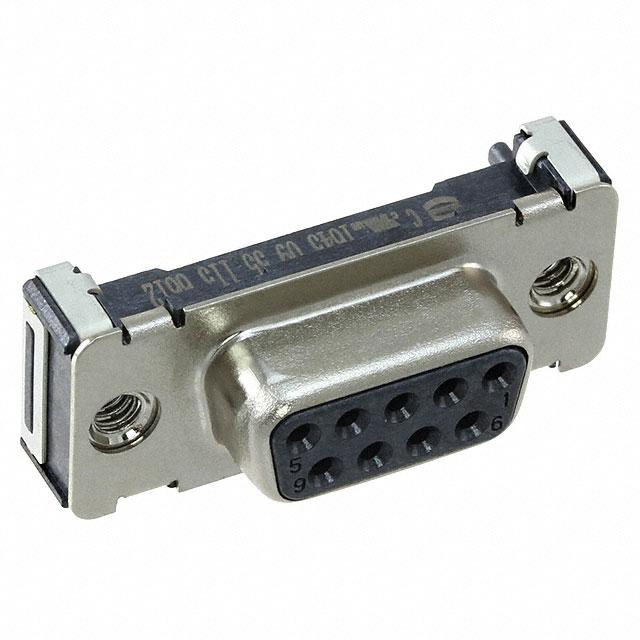

HARTING 09551156612741
Product Information
Series:
D-Sub
Current Rating:
5.0A
Dimensions:
31.12 x 12.5 x 12.25mm
Mounting Type:
Surface Mount
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Length:
31.12mm
Housing Material:
Metal
Width:
12.5mm
Depth:
12.25mm
Contact Plating:
Gold
Pitch:
2.74mm
Mounting Hardware:
4-40 UNC, Threaded Insert
Number of Contacts:
9
Maximum Operating Temperature:
+260°C
Contact Material:
Phosphor Bronze
Shell Size, Connector Layout:
1 (DE, E)
Flange Feature:
Housing/Shell (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
-
Dielectric Material:
Liquid Crystal Polymer (LCP)
Number of Positions:
9
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
09551156612741 Models
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/5252249
Package:
Tape & Reel (TR)
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
5A
Backset Spacing:
-
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Color:
Black
Series:
-
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Phosphor Bronze
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09551156612741 on website for other similar products.
We accept all major payment methods for all products including ET10944585. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09551156612741 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09551156612741. You can also check on our website or by contacting our customer support team for further order details on HARTING 09551156612741.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10944585 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10944585.
Yes. We ship 09551156612741 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09551156612741. The product d-sub, is a highly preferred choice for users. The product has a current rating of 5.0a. The given dimensions of the product include 31.12 x 12.5 x 12.25mm. The product is available in surface mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 31.12mm. The product also features robust metal housing material. Furthermore, the product is 12.5mm wide. The product comes in 12.25mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.74mm. It has 4-40 unc, threaded insert hardware mounting . The product contains 9 contacts. It has a maximum operating temperature of +260°c. The product is made from sturdy phosphor bronze materials. 1 (de, e) is the shell size and connector layout. Furthermore, housing/shell (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub connector style. Moreover, the product is constructed from highly liquid crystal polymer (lcp) dielectric material. The product carries possible position value of 9. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in tape & reel (tr) package . It also has a stamped contact form. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 9 weeks standard lead time. Additionally, the product's output is 5a. The splendid features of the product include board guide. It has a classic black colour. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of signal. The product is designated with the ear99 code number.
