Shell Size, Connector Layout:
2 (DA, A) High Density
Flange Feature:
Mating Side, Female Screwlock (4-40)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 105°C
Connector Style:
D-Sub, High Density
Contact Finish Thickness:
8.00µin (0.203µm)
Dielectric Material:
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions:
26
Voltage Rating:
60V
REACH Status:
REACH Unaffected
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Wire Gauge:
-
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Lock
Mounting Type:
Panel Mount, Through Hole
Color:
Black
Series:
-
Shell Material, Finish:
Zinc Die Cast, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
15-0005
ECCN:
EAR99

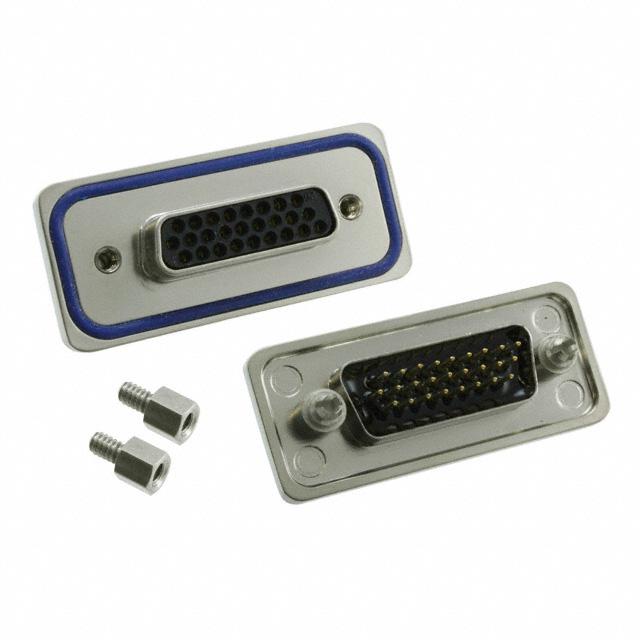

This is manufactured by Conec. The manufacturer part number is 15-000543. 2 (da, a) high density is the shell size and connector layout. Furthermore, mating side, female screwlock (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 105°c operating temperature range. It comes in d-sub, high density connector style. It has 8.00µin (0.203µm) of contact finishing thickness. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), glass filled dielectric material. The product carries possible position value of 26. Moreover, the product has a nominal 60v voltage rating. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 3a. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board lock. The product is available in panel mount, through hole configuration. It has a classic black colour. It is made from durable shell materials and has an excellent finishing such as zinc die cast, nickel plated. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 15-0005, a base product number of the product. The product is designated with the ear99 code number.
