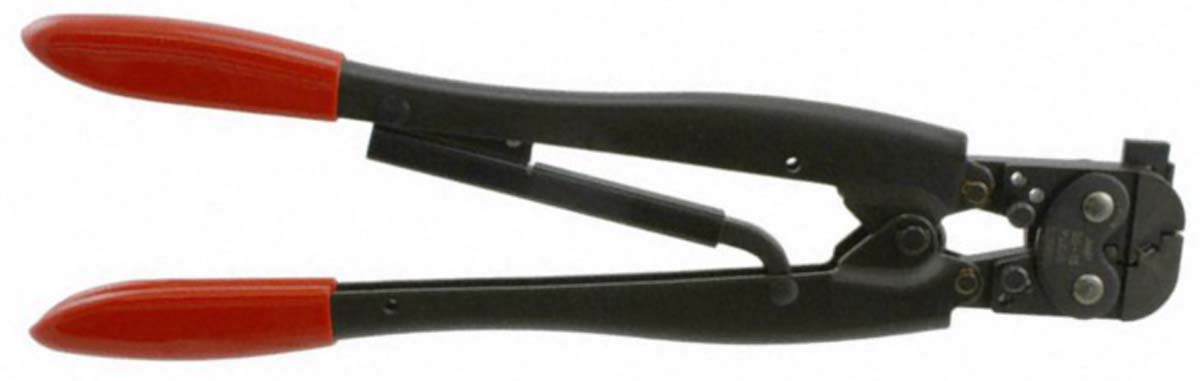

TE Connectivity CERTI-CRIMP Ratchet Crimping Tool, PIDG Splices/Terminals, Plasti-Grip Terminals, Minimum 20AWG

Enrgtech Part No: ET14125551
|
Manufacturer Part No:
525690
|
Manufacturer: TE Connectivity

525690 TE Connectivity CERTI-CRIMP Ratchet Crimping Tool, PIDG Splices/Terminals, Plasti-Grip Terminals, Minimum 20AWG

Product Information

Series:

CERTI-CRIMP

Wire Size AWG:

20 → 18AWG

Ratcheting:

Yes

For Use With:

PIDG Splices, PIDG Terminals, Plasti-Grip Terminals

Operation:

Hand

Product Type:

Crimp Tool

Checking for live stock

The TE Connectivity 525690 ratchet crimping tool is a high-precision hand tool engineered for creating reliable electrical terminations. Designed specifically for use with PIDG Splices/Terminals and Plasti-Grip Terminals, it ensures consistent, factory-quality crimps on 20 to 18 AWG wires. The built-in ratcheting mechanism guarantees that the handle is not released until the crimp cycle is fully completed, eliminating partially formed crimps and ensuring optimal connection integrity and longevity for professional electrical and electronic assemblies.

Why Should You Buy the TE Connectivity 525690 Ratchet Hand Crimp Tool?

Purchase this crimp tool for guaranteed, high-quality terminal installation. The CERTI-CRIMP ratchet mechanism ensures a full crimp every time, boosting the reliability of electrical connections and preventing rework and field failures. It is an essential, precision tool for professionals working with PIDG and Plasti-Grip insulated terminals.

Feature Highlights & Applications Areas of the Crimp Tool

Feature Highlights:
- CERTI-CRIMP ratchet mechanism ensures a complete crimp cycle before tool release.
- Optimised for crimping PIDG and Plasti-Grip insulated terminals and splices.
- Precision-engineered to work with 20 AWG to 18 AWG wire sizes.
- Hand-operated design for ergonomic and consistent use in the field or on the bench.
- Part of the highly regarded CERTI-CRIMP series for professional-grade reliability.
Application Areas:
- Aerospace and Automotive wiring harness manufacturing and maintenance.
- Industrial control panel assembly and electrical cabinet wiring.
- Electronics installation, maintenance, and repair work.
- Any high-reliability electrical interconnection project requiring strict crimp quality standards.

Datasheet(Technical Reference)

Where Form Meets Function - Crimp Guidlines(Technical Reference)

DAHT Hand Crimping Tool, PIDG, PLASTI-GRIP Terminals(Technical Reference)

Premium Hand Tools and Crimp Quality Guidelines(Technical Reference)
