Name: 69710-1, TE Connectivity
Brand: TE Connectivity
SKU: ET13889822
Price: 1140.57 GBP
Availability: InStock

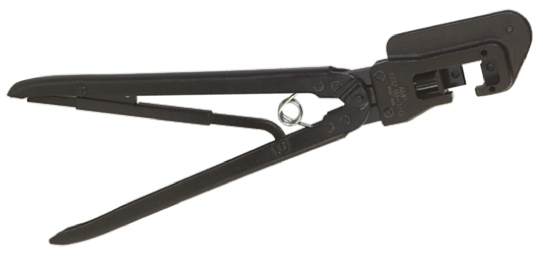

The TE Connectivity 69710-1 is a premium-grade C-Head straight action frame engineered for high-quality terminations. Part of the renowned CERTI-CRIMP family, this ratchet hand crimp tool frame utilises a specialised ratchet mechanism to ensure complete crimping cycles. It is designed for use with various interchangeable die sets, making it highly versatile for different circular contacts. Built with durable materials, it provides consistent mechanical and electrical performance for low-volume production, repairs, and prototyping.

Key Advantages for Users

The factory-set ratchet prevents partial crimps by remaining locked until the cycle is finished. This TE Connectivity 69710-1 frame requires minimal operator skill to produce professional-grade, high-quality terminations.

Interchangeable die sets offer flexibility for multiple wire gauges.
Ergonomic handles reduce operator fatigue during repetitive manual tasks.

Design Features & Technical Specifications

Tool Type: Manual Straight Action Hand Tool (SAHT).
Series: CERTI-CRIMP C-Head.
Ratchet Configuration: Fixed (Not releasable or adjustable) for cycle assurance.
Wire Range: Typically 22-10 AWG (varies depending on the specific die set installed).
Die Holder: Features stationary and moving die holders for straight-line closure.
Durability: Service life of over 50,000 cycles with proper maintenance.
Application Compatibility: Supports military, UL, and CSA specified applications.

Hand Tool Instructions(Technical Reference)

PIDG PEEK STRATO-THERM Terminal Crimping Dies(Technical Reference)

Premium Hand Tools and Crimp Quality Guidelines(Technical Reference)

Specification(Technical Reference)

Instruction Sheet(Technical Reference)

"C" Head Straight Action Hand Tool (SAHT) 69710-1(Technical Reference)

AMP Circular Connectors for Commercial Signal & Power Applications(Technical Reference)

Where Form Meets Function - Crimp Guidlines(Technical Reference)

Hand Tool Assembly - Product Overview(Technical Reference)
