Analog Devices Inc. ADCMP566BCPZ
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
42µA @ -5.2V,5V
Current - Quiescent (Max):
18mA, 85mA
Operating Temperature:
-40°C ~ 85°C
Voltage - Supply, Single/Dual (±):
±4.75V ~ 5.25V

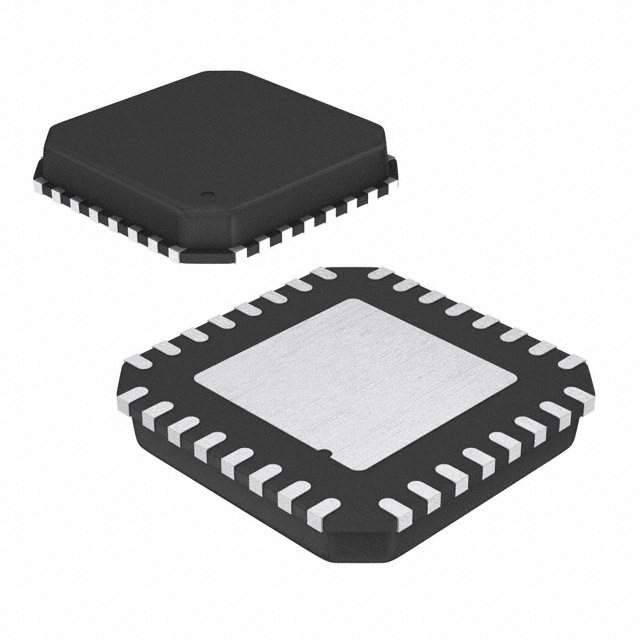

Package / Case:
32-VFQFN Exposed Pad, CSP
Type:
with Latch
Propagation Delay (Max):
0.29ns
edacadModel:
ADCMP566BCPZ Models
REACH Status:
REACH Unaffected
Output Type:
Complementary, Differential, ECL, Open-Emitter
Hysteresis:
±1mV
edacadModelUrl:
/en/models/996652
CMRR, PSRR (Typ):
69dB CMRR
Package:
Tray
Voltage - Input Offset (Max):
5mV @ -5.2V, 5V
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Current - Output (Typ):
30mA
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
32-LFCSP (5x5)
Number of Elements:
2
Base Product Number:
ADCMP566
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ADCMP566BCPZ on website for other similar products.
We accept all major payment methods for all products including ET11748858. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with ADCMP566BCPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Comparators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. ADCMP566BCPZ. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. ADCMP566BCPZ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11748858 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11748858.
Yes. We ship ADCMP566BCPZ Internationally to many countries around the world.
This is manufactured by Analog Devices Inc.. The manufacturer part number is ADCMP566BCPZ. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The maximum input bias current includes 42µa @ -5.2v,5v. It has a maximum quiescent current of 18ma, 85ma. The product has -40°c ~ 85°c operating temperature range. It features a typical ±4.75v ~ 5.25v voltage of single or dual. Moreover, the product comes in 32-vfqfn exposed pad, csp. It comes in with latch configuration. Has a maximum 0.29ns propagation delay. In addition, it is reach unaffected. Furthermore, it has acomplementary, differential, ecl, open-emitter output. Features ±1mv hysteresis. Typical CMRR, PSRR of 69db cmrr. It is shipped in tray package . The maximum input offset voltage of 5mv @ -5.2v, 5v. Its typical moisture sensitivity level is 3 (168 hours). Features a typical output current of 30ma. The product is available in surface mount configuration. 32-lfcsp (5x5) is the supplier device package value. It carries 2 elements. Moreover, it corresponds to adcmp566, a base product number of the product. The product is designated with the ear99 code number.
