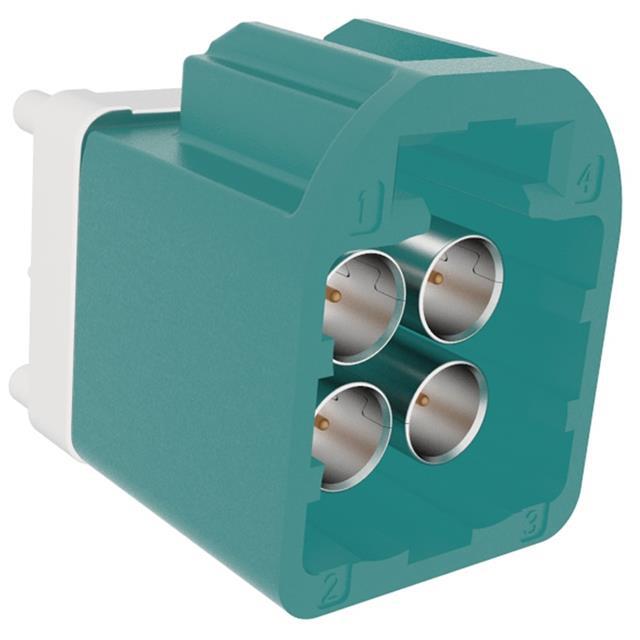

Amphenol RF FM4-NZSP-PCB-1

FM4-NZSP-PCB-1 Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Copper Alloy
Operating Temperature:
-40°C ~ 105°C
Connector Style:
Miniature Coaxial, Fakra, Quadraxial
Body Finish:
Tin
Dielectric Material:
Liquid Crystal Polymer (LCP)
Insertion Loss:
-
standardLeadTime:
12 Weeks
title:
FM4-NZSP-PCB-1
Shield Termination:
Solder
Includes:
-
Frequency - Max:
9 GHz
Housing Color:
Blue, Water
Impedance:
50 Ohms
Cable Group:
-
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Zinc Alloy
Fastening Type:
Latch Lock
Mating Cycles:
25
Ingress Protection:
-
Features:
Code Z
Mounting Type:
Through Hole
Series:
AUTOMATE™
Center Contact Plating:
Gold
Packaging:
Tape & Reel (TR)
Contact Termination:
Solder
Base Product Number:
FM4-NZSP
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is FM4-NZSP-PCB-1. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The copper alloy material is utilised for designing its center contacts. The product has -40°c ~ 105°c operating temperature range. It comes in miniature coaxial, fakra, quadraxial connector style. The body is galvanized with nice finishing of tin. Moreover, the product is constructed from highly liquid crystal polymer (lcp) dielectric material. It has a long 12 weeks standard lead time. It has a solder shield termination. It maximum frequency is 9 ghz. It has an integral blue, water housing colour. It has an impedance value of 50 ohms. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from zinc alloy materials. Furthermore, latch lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 25. The splendid features of the product include code z. The product is available in through hole configuration. The product automate™, is a highly preferred choice for users. The center contact is plated with a [Center Contract Plating]. In addition, tape & reel (tr) is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to fm4-nzsp, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
FM4-NxSP-PCB-1 Drawing(Datasheets)
