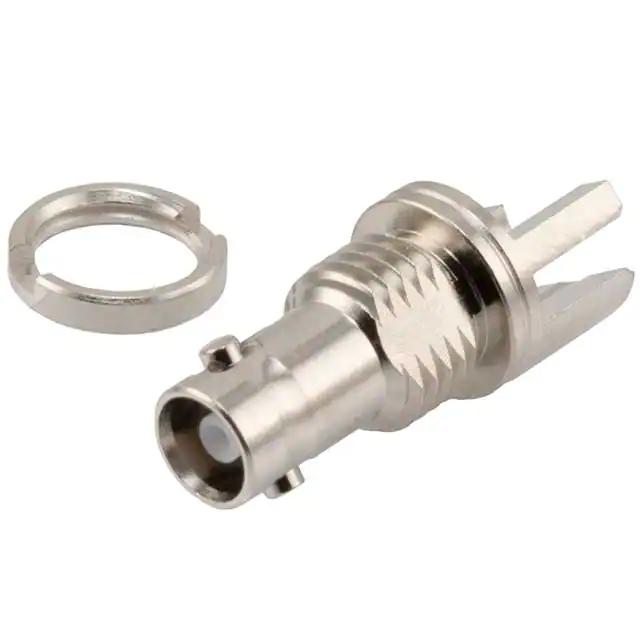

Pasternack PE40015

PE40015 Pasternack
Pasternack

Product Information

HTSUS:
8517.70.0000
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-
Connector Style:
BNC, HD
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Solder
REACH Status:
Vendor Undefined
Includes:
-
Frequency - Max:
12 GHz
Housing Color:
Silver
Impedance:
75Ohm
Cable Group:
-
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, End Launch; Panel Mount
Series:
-
Contact Termination:
Solder
Base Product Number:
PE4001
ECCN:
EAR99
Checking for live stock

This is manufactured by Pasternack. The manufacturer part number is PE40015. It is assigned with possible HTSUS value of 8517.70.0000. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The brass material is utilised for designing its center contacts. It comes in bnc, hd connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a solder shield termination. In addition, it is vendor undefined. It maximum frequency is 12 ghz. It has an integral silver housing colour. It has an impedance value of 75ohm. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. The product is available in board edge, end launch; panel mount configuration. It also incorporates solder contact terminals. Moreover, it corresponds to pe4001, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
PE40015(Datasheets)
