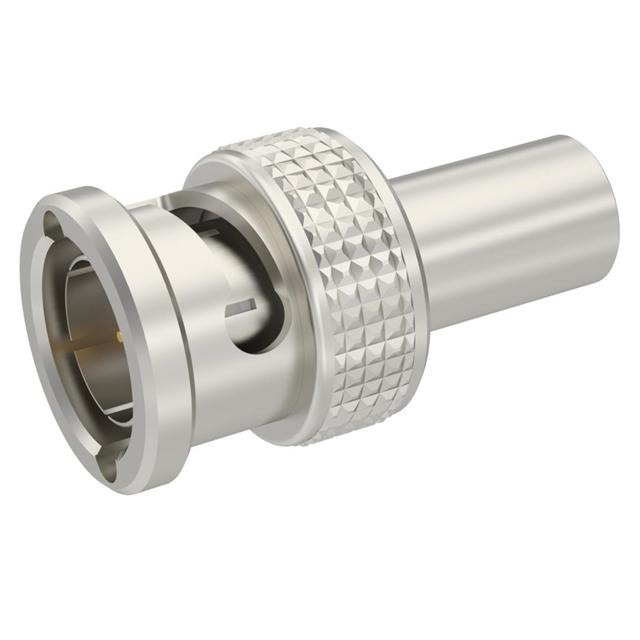

Radiall USA, Inc. R142077732

R142077732 Radiall USA, Inc.
Radiall USA, Inc.

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
BNC
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
standardLeadTime:
10 Weeks
title:
R142077732
Shield Termination:
Crimp
Includes:
-
Frequency - Max:
6 GHz
Housing Color:
Gold
Impedance:
75 Ohms
Cable Group:
RG-6, Belden 1694A
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
1000
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
R14207
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is R142077732. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. It has a long 10 weeks standard lead time. It has a crimp shield termination. It maximum frequency is 6 ghz. It has an integral gold housing colour. It has an impedance value of 75 ohms. Cable Group Options: rg-6, belden 1694a. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 1000. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to r14207, a base product number of the product. The product is designated with the ear99 code number.
