Radiall USA, Inc. R141083000W

Enrgtech Part No: ET21768339
|
Manufacturer Part No:
R141083000W
|
Manufacturer: Radiall USA, Inc.

(0)

Product Information

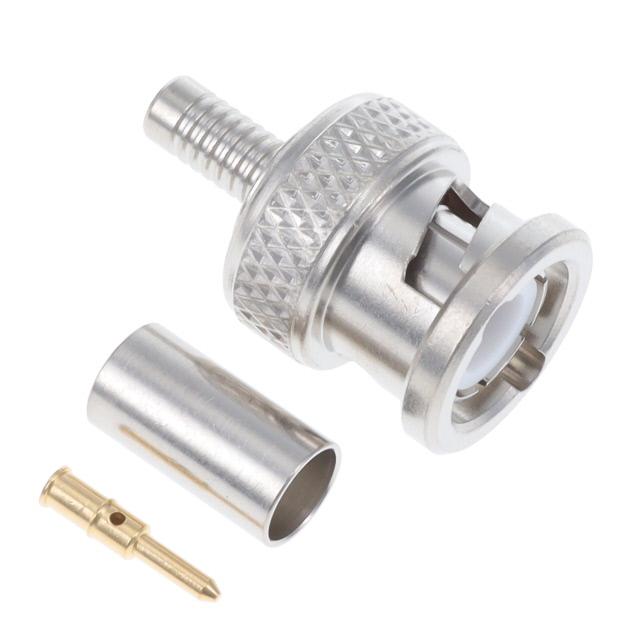

The R141083000W is a meticulously designed BNC connector plug, ensuring reliable signal transmission. This in-line connector is ideal for RF systems, test equipment, and broadcast setups requiring robust coaxial connections.

Shield Termination:

Crimp

HTSUS:

8536.69.4010

RoHS Status:

ROHS3 Compliant

Mounting Feature:

Center Contact Material:

Brass

Operating Temperature:

-65°C ~ 165°C

Connector Style:

BNC

Body Finish:

Nickel

Dielectric Material:

Polytetrafluoroethylene (PTFE)

Insertion Loss:

standardLeadTime:

24 Weeks

Voltage Rating:

500 V

Checking for live stock

The Radiall USA, Inc. R141083000W is a refined BNC connector plug built to confirm reliable signal transmission in electronic applications. With its male pin configuration, 50-ohm impedance, free-hanging (in-line) design, and crimp attachment method, it offers a dependable solution for connecting coaxial cables.

Key Characteristics:

Ensuring Signal Integrity: BNC (Bayonet Neill–Concelman) connectors are widely used for connecting coaxial cables in various applications, including telecommunications, broadcast, instrumentation, and RF (radio frequency) systems. The R141083000W BNC connector plug is engineered to maintain signal integrity and minimise signal loss during transmission.
Secure Connection: The male pin configuration of the R141083000W BNC connector allows for a fast connection to the corresponding female BNC connector or jack. This design prevents accidental disconnections and ensures consistent signal transmission.
Matching Signal Characteristics: With a 50-ohm impedance, the R141083000W BNC connector is designed to match the characteristic impedance of coaxial cables generally employed in RF applications. Matching impedance helps prevent signal reflections and ensures optimal signal transfer.
Flexible Installation: The free-hanging (in-line) design of the R141083000W BNC connector allows for flexible installation and easy integration into various systems. This design is handy when connecting cables in situations where space is limited or when in-line connections are preferred.
Secure and Reliable: The crimp attachment method used in the R141083000W BNC connector provides a safe and reliable connection between the connector and the coaxial cable. Crimping ensures a solid mechanical bond that withstands vibration, movement, and environmental factors.

Use Cases of Radiall USA, Inc. R141083000W:

The R141083000W BNC connector plug finds applications in a wide range of industries. It is commonly utilised in the following ways:

RF Systems
Test And Measurement Equipment
Broadcast Setups
Other applications that require dependable coaxial connections.
