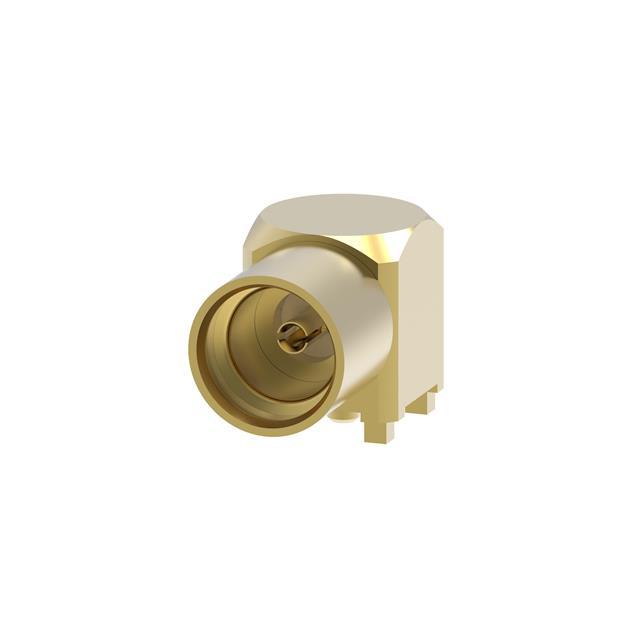

IMS Connector Systems 5064.09.2520.003
Product Information
Shield Termination:
Solder
HTSUS:
8536.69.4010
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 125°C
Connector Style:
MMCX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
1 Weeks
Voltage Rating:
225 V
Includes:
-
Frequency - Max:
18 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
-
Package:
Tape & Reel (TR)
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
5064.09.2
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5064.09.2520.003 on website for other similar products.
We accept all major payment methods for all products including ET20927296. Please check your shopping cart at the time of order.
You can order IMS Connector Systems brand products with 5064.09.2520.003 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of IMS Connector Systems 5064.09.2520.003. You can also check on our website or by contacting our customer support team for further order details on IMS Connector Systems 5064.09.2520.003.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20927296 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "IMS Connector Systems" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20927296.
Yes. We ship 5064.09.2520.003 Internationally to many countries around the world.
This is manufactured by IMS Connector Systems. The manufacturer part number is 5064.09.2520.003. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 125°c operating temperature range. It comes in mmcx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 1 weeks standard lead time. Moreover, the product has a nominal 225 v voltage rating. It maximum frequency is 18 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in tape & reel (tr) package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 5064.09.2, a base product number of the product. The product is designated with the ear99 code number.
