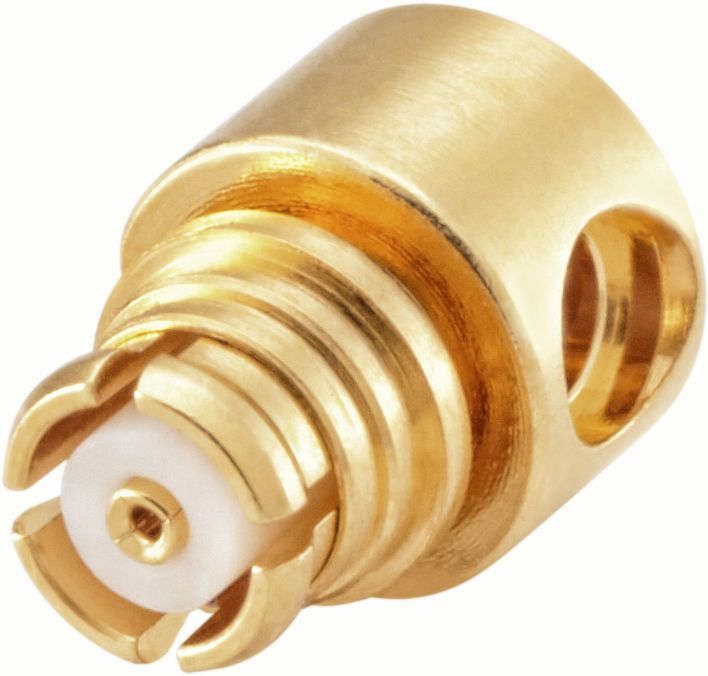

Rosenberger 19K207-270L5

19K207-270L5 Rosenberger
Rosenberger

Product Information

Mating Type:
Snap On
Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Right Angle
Cable Type:
Semi Rigid
Coaxial Connector Type:
SMP Connector
Contact Plating:
Gold
Termination Method:
Solder
Operating Frequency:
0 to 40GHz
Impedance:
50Ω
Contact Material:
Copper Zinc Alloy
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 155°C
Connector Style:
SMP
Body Finish:
Gold
Dielectric Material:
Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
26.5 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
335 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Beryllium Copper
Fastening Type:
Snap-On
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
19K207
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Rosenberger. The manufacturer part number is 19K207-270L5. It is a type of snap on mating. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It is a typical semi rigid cable. This coaxial connector is a type of smp connector. The high-quality gold is used as contact plating material. It allows solder termination method. Furthermore, the product has 0 to 40ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy copper zinc alloy materials. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 155°c operating temperature range. It comes in smp connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polyetheretherketone (peek); polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a solder shield termination. In addition, it is reach affected. It maximum frequency is 26.5 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 335 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from beryllium copper materials. Furthermore, snap-on is the Fastening Type of the product. The product is available in free hanging (in-line), right angle configuration. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 19k207, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RF coaxial right angle SMP jack, 50 OHM, solder(Technical Reference)
pdf icon
19K207-270L5 Datasheet(Datasheets)
